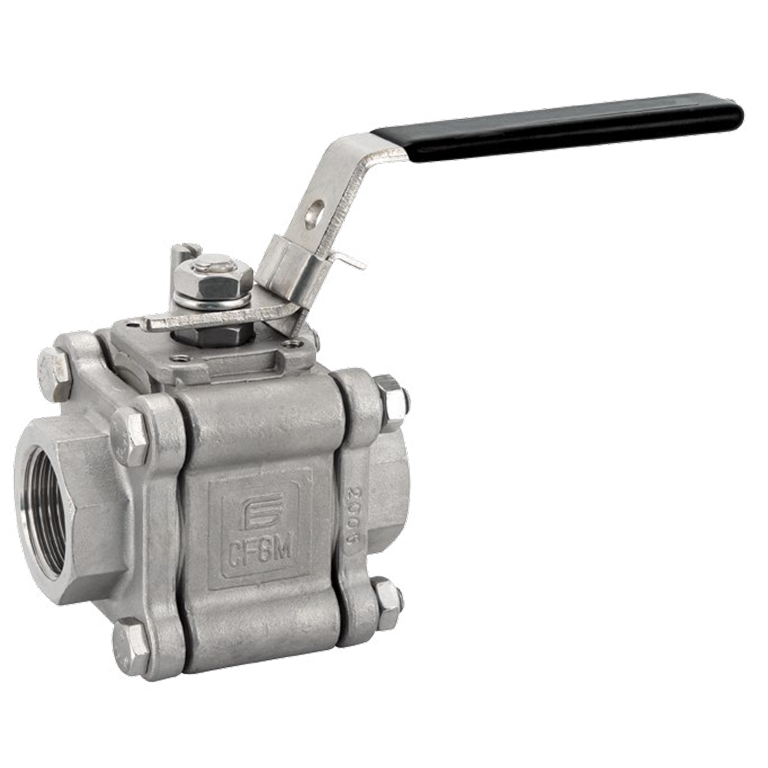

316 stainless steel three-piece threaded ball valves with lever ensure maximum durability and reliability for hydraulic and industrial systems. Made from AISI 316 stainless steel, they provide excellent corrosion resistance and long service life, suitable for water, gas, and aggressive fluids. The three-piece design allows easy maintenance and cleaning. Available with female threaded connections from 1/4" to 2", they guarantee secure sealing and smooth operation.
Parameter | Value |
|---|---|
Type | 3-piece threaded 316 stainless steel ball valve with lever |
Series | TITAN® |
Body material | A351 CF8M (AISI 316) |
Connections | F/F gas, NPT, SW, BW |
Thread | UNI ISO 7/1 (EN 10226), ANSI B1.20.1, B16.11, B16.25 |
Nominal pressure | PN140 (1/4”-1”), PN100 (1 1/4”-2”) |
Temperature limits | -20°C ÷ +150°C (PTFE), up to 180°C with CRB |
Stem material | AISI 316 |
Stem seal | Blow-out proof with antistatic device |
Operating lever | Lever with locking device |
Actuator mounting | ISO 5211 |
Applications | Chemical, hydraulic, pneumatic systems, steam (up to 10 bar) |
Special executions | PTFE+Carbographite, oval handwheel, oxygen versions |
Main components | Body, female sleeve, ball, stem, seats, seals, lever: stainless steel/PTFE |
Available sizes | From 1/4'' to 2'' |
Torque (Nm) | 0 bar: 10–55 Nm | 64 bar: 15–98 Nm | 105 bar: 18–125 Nm | 140 bar: 19–31 Nm |
Construction notes | Body removable for inline maintenance, cool during welding |
Filter by:
| Code | Description | Nominal Diameter (DN) | Material | Coupling Connection | Actuation | Brand | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|
| EFFEBI2805012 | Valvola a sfera Titan Inox 316 a 3 pezzi FF 1/2" con leva | DN15 - 1/2 inch | 316 stainless steel | Threaded | Lever | Effebi | Limited quantity | 78,00 € |
|
| EFFEBI2805014 | Valvola a sfera Titan Inox 316 a 3 pezzi FF 1/4" con leva | DN8 - 1/4 inch | 316 stainless steel | Threaded | Lever | Effebi | Limited quantity | 66,00 € |
|
| EFFEBI2805034 | Valvola a sfera Titan Inox 316 a 3 pezzi FF 3/4" con leva | DN20 - 3/4 inch | 316 stainless steel | Threaded | Lever | Effebi | Limited quantity | 103,00 € |
|
| EFFEBI2805038 | Valvola a sfera Titan Inox 316 a 3 pezzi FF 3/8" con leva | DN10 - 3/8 inch | 316 stainless steel | Threaded | Lever | Effebi | Limited quantity | 66,00 € |
|
| EFFEBI2805100 | Valvola a sfera Titan Inox 316 a 3 pezzi FF 1" con leva | DN25 - 1 inch | 316 stainless steel | Threaded | Lever | Effebi | Limited quantity | 140,00 € |
|
| EFFEBI2805112 | Valvola a sfera Titan Inox 316 a 3 pezzi FF 1.1/2" con leva | DN40 - 1 1/2 inches | 316 stainless steel | Threaded | Lever | Effebi | Limited quantity | 227,00 € |
|
| EFFEBI2805114 | Valvola a sfera Titan Inox 316 a 3 pezzi FF 1.1/4" con leva | DN32 - 1 1/4 inch | 316 stainless steel | Threaded | Lever | Effebi | Limited quantity | 181,00 € |
|
| EFFEBI2805200 | Valvola a sfera Titan Inox 316 a 3 pezzi FF 2" con leva | DN50 - 2 inches | 316 stainless steel | Threaded | Lever | Effebi | Limited quantity | 336,00 € |
|
