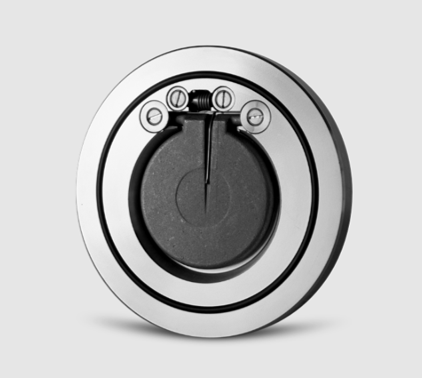

Clapet check valves ensure reliable, unidirectional flow in hydraulic and industrial systems. Manufactured in galvanized steel A105 or AISI 316 stainless steel with EPDM sealing, they provide mechanical strength, corrosion resistance, and long-lasting performance. Available in PN10-16 and PN10-40 ratings, with diameters from DN32 to DN200, these valves guarantee optimal operation for water, air, and compatible fluids.
Parameter | Value |
|---|---|
Type | Clapet check valve |
Series | CV |
Execution | Wafer |
Standard materials | Carbon steel, stainless steel AISI 316, aluminum bronze |
Sealing | Metal or soft seal (NBR, EPDM, PTFE, FKM) |
Spring | AISI 316 |
Diameter range | DN 32 - DN 350 (standard) | up to DN 800 (on request) |
Features | Self-centering, low pressure loss, easy installation and maintenance |
Installation | All positions, including vertical with downward flow |
Nominal pressure | PN6, PN10, PN16, PN25, ANSI150 (up to PN250 and ANSI1500 on request) |
Opening pressure (mbar) | From 3 to 32 mbar depending on DN and opening angle |
Vertical downward installation | Allowed |
Available sizes | DN32 - DN800 (with various A, C, D dimensions and weight in Kg) |
Additional notes | PED 2014/68/EU compliant, compatible with DIN and ANSI flanges |
Filter by:
| Code | Description | Nominal Diameter (DN) | Nominal Pressure (PN) | Material | Closing | Brand | Seal | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| MEICVA10500100 | Valvola di ritegno clapet CV A105 zincato, tenuta EPDM, PN10-16 DN100 | DN100 - 4 inches | 10/16 | A105 | Clapet | Mei | EPDM | Limited quantity | 77,00 € |
|
| MEICVA10500125 | Valvola di ritegno clapet CV A105 zincato, tenuta EPDM, PN10-16 DN125 | DN125 - 5 inches | 10/16 | A105 | Clapet | Mei | EPDM | Limited quantity | 107,00 € |
|
| MEICVA10500150 | Valvola di ritegno clapet CV A105 zincato, tenuta EPDM, PN10-16 DN150 | DN150 - 6 inches | 10/16 | A105 | Clapet | Mei | EPDM | Limited quantity | 122,00 € |
|
| MEICVA10500200 | Valvola di ritegno clapet CV A105 zincato, tenuta EPDM, PN10-16 DN200 | DN200 - 8 inches | 10/16 | A105 | Clapet | Mei | EPDM | Limited quantity | 173,00 € |
|
| MEICVA1050032 | Valvola di ritegno clapet CV A105 zincato, tenuta EPDM, PN10-40 DN 32 | DN32 - 1 1/4 inch | 10/40 | A105 | Clapet | Mei | EPDM | Not available | 77,00 € |
|
| MEICVA1050040 | Valvola di ritegno clapet CV A105 zincato, tenuta EPDM, PN10-40 DN 40 | DN40 - 1 1/2 inches | 10/40 | A105 | Clapet | Mei | EPDM | Limited quantity | 66,00 € |
|
| MEICVA1050050 | Valvola di ritegno clapet CV A105 zincato, tenuta EPDM, PN10-40 DN 50 | DN50 - 2 inches | 10/40 | A105 | Clapet | Mei | EPDM | Limited quantity | 72,00 € |
|
| MEICVA1050065 | Valvola di ritegno clapet CV A105 zincato, tenuta EPDM, PN10-40 DN 65 | DN65 - 2 1/2 inches | 10/40 | A105 | Clapet | Mei | EPDM | Limited quantity | 68,00 € |
|
| MEICVA1050080 | Valvola di ritegno clapet CV A105 zincato, tenuta EPDM, PN10-40 DN 80 | DN80 - 3 inches | 10/40 | A105 | Clapet | Mei | EPDM | Limited quantity | 76,00 € |
|
| MEICVI3160032 | Valvola di ritegno clapet CV AISI316 tenuta EPDM, PN10-40 DN32 | DN32 - 1 1/4 inch | 10/40 | AIS 316 | Clapet | Mei | EPDM | Not available | 95,00 € |
|
| MEICVI3160040 | Valvola di ritegno clapet CV AISI316 tenuta EPDM, PN10-40 DN40 | DN40 - 1 1/2 inches | 10/40 | AIS 316 | Clapet | Mei | EPDM | Limited quantity | 95,00 € |
|
| MEICVI3160050 | Valvola di ritegno clapet CV AISI316 tenuta EPDM, PN10-40 DN50 | DN50 - 2 inches | 10/40 | AIS 316 | Clapet | Mei | EPDM | Limited quantity | 104,00 € |
|
| MEICVI3160065 | Valvola di ritegno clapet CV AISI316 tenuta EPDM, PN10-40 DN65 | DN65 - 2 1/2 inches | 10/40 | AIS 316 | Clapet | Mei | EPDM | Limited quantity | 127,00 € |
|
| MEICVI3160080 | Valvola di ritegno clapet CV AISI316 tenuta EPDM, PN10-40 DN80 | DN80 - 3 inches | 10/40 | AIS 316 | Clapet | Mei | EPDM | Limited quantity | 151,00 € |
|
| MEICVI3160100 | Valvola di ritegno clapet CV AISI316 tenuta EPDM, PN10-16 DN100 | DN100 - 4 inches | 10/16 | AIS 316 | Clapet | Mei | EPDM | Limited quantity | 198,00 € |
|
| MEICVI3160125 | Valvola di ritegno clapet CV AISI316 tenuta EPDM, PN10-16 DN125 | DN125 - 5 inches | 10/16 | AIS 316 | Clapet | Mei | EPDM | Limited quantity | 254,00 € |
|
| MEICVI3160150 | Valvola di ritegno clapet CV AISI316 tenuta EPDM, PN10-16 DN150 | DN150 - 6 inches | 10/16 | AIS 316 | Clapet | Mei | EPDM | Limited quantity | 310,00 € |
|
| MEICVI3160200 | Valvola di ritegno clapet CV AISI316 tenuta EPDM, PN10-16 DN200 | DN200 - 8 inches | 10/16 | AIS 316 | Clapet | Mei | EPDM | Limited quantity | 451,00 € |
|
