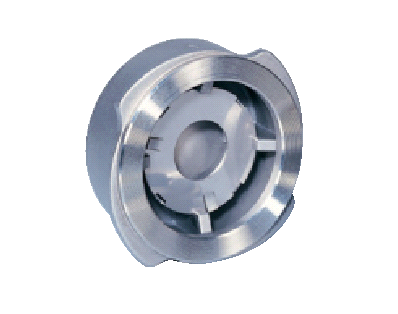

AISI 316 disc check valves provide reliable, high-performance backflow protection for industrial and process applications. Made entirely of AISI 316 stainless steel with metal-to-metal sealing, they ensure durability, corrosion resistance, and long service life. With nominal pressures PN6/40 and sizes from DN15 to DN100, these valves guarantee secure unidirectional flow and consistent performance for water, air, and process fluids.
Parameter | Value |
|---|---|
Type | Disc check valve |
Series | DISK® |
Article | Art. 2302 |
Body material | Stainless steel AISI 316 |
Disc material | Stainless steel AISI 316 |
Spring material | AISI 316 |
Sealing | PTFE, EPDM, FPM |
Temperature limits | -25°C ÷ +200°C |
Pressure limits | PN16 (for DN15÷DN100), PN10 (for DN125÷DN150) |
Connections | Wafer |
Available diameters | DN15 ÷ DN150 |
Opening pressure | 0.025 bar |
Installation | Vertical and horizontal mounting (with spring) |
Applications | Chemical, food, hydraulic, thermal systems |
Features | Compact body, excellent sealing, spring-assisted retained disc |
Additional notes | Mounting between PN10/16 flanges, DIN or ANSI (on request) |
Filter by:
| Code | Description | Nominal Diameter (DN) | Nominal Pressure (PN) | Material | Closing | Brand | Seal | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| GHIGB0150015 | Valvola di ritegno a disco AIS 316, tenuta metallo-metallo, PN6/40 DN 15 | DN15 - 1/2 inch | 6/40 | AIS 316 | Disc | Ghibson | MET_MET | Available | 49,00 € |
|
| GHIGB0150020 | Valvola di ritegno a disco AIS 316, tenuta metallo-metallo, PN6/40 DN 20 | DN20 - 3/4 inch | 6/40 | AIS 316 | Disc | Ghibson | MET_MET | Available | 51,00 € |
|
| GHIGB0150025 | Valvola di ritegno a disco AIS 316, tenuta metallo-metallo, PN6/40 DN 25 | DN25 - 1 inch | 6/40 | AIS 316 | Disc | Ghibson | MET_MET | Available | 60,00 € |
|
| GHIGB0150032 | Valvola di ritegno a disco AIS 316, tenuta metallo-metallo, PN6/40 DN 32 | DN32 - 1 1/4 inch | 6/40 | AIS 316 | Disc | Ghibson | MET_MET | Available | 76,00 € |
|
| GHIGB0150040 | Valvola di ritegno a disco AIS 316, tenuta metallo-metallo, PN6-40 DN 40 | DN40 - 1 1/2 inches | 6/40 | AIS 316 | Disc | Ghibson | MET_MET | Available | 69,00 € |
|
| GHIGB0150050 | Valvola di ritegno a disco AIS 316, tenuta metallo-metallo, PN6-40 DN 50 | DN50 - 2 inches | 6/40 | AIS 316 | Disc | Ghibson | MET_MET | Available | 96,00 € |
|
| GHIGB0150065 | Valvola di ritegno a disco AIS 316, tenuta metallo-metallo, PN6-40 DN 65 | DN65 - 2 1/2 inches | 6/40 | AIS 316 | Disc | Ghibson | MET_MET | Limited quantity | 137,00 € |
|
| GHIGB0150080 | Valvola di ritegno a disco AIS 316, tenuta metallo-metallo, PN6-40 DN 80 | DN80 - 3 inches | 6/40 | AIS 316 | Disc | Ghibson | MET_MET | Limited quantity | 155,00 € |
|
| GHIGB0150100 | Valvola di ritegno a disco AIS 316, tenuta metallo-metallo, PN10-40 DN100 | DN100 - 4 inches | 10/40 | AIS 316 | Disc | Ghibson | MET_MET | Limited quantity | 233,00 € |
|
