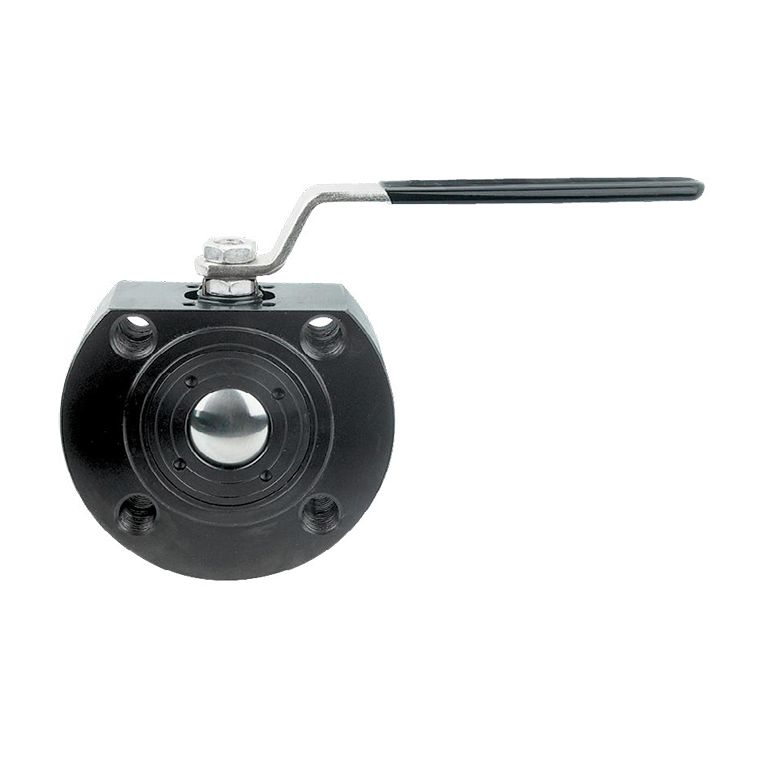

Carbon steel wafer ball valves with lever are designed for industrial applications requiring strength and reliability. Manufactured in ASTM A105/LF2 with stainless steel components and PTFE seats, they provide excellent mechanical resistance and tight sealing. Available with wafer PN16/40 connections and sizes from DN15 to DN100, these valves ensure long service life, smooth operation, and safe performance in hydraulic and process systems.
Parameter | Value |
|---|---|
Type | Wafer ball valve in carbon steel with lever |
Series | MOON® |
Body material | ASTM A105 (bar stock), LF2 (cast) |
Ball material | DN15–20: AISI 316; DN25–100: AISI 304 |
Stem material | AISI 304 |
Seat material | PTFE (options: +15% fiberglass, +carbographite, PE-HD) |
Connections | Wafer - compatible with UNI-EN 1092 and DIN2501 flanges |
Nominal diameters (DN) | DN15 ÷ DN100 |
Nominal pressure | PN16/40 (bar stock), PN16 (cast) |
Temperature limits | A105: -10°C ÷ +180°C | LF2: -20°C ÷ +180°C |
Reference standards | BS EN ISO 17292:2004, ISO 5211 |
Certifications | FIRE SAFE (BS 6755, API 6FA, API 607), DVGW Gas, TÜV TA Luft |
Stem sealing | Patented triple stem labyrinth seal with cup springs |
Actuator interface | ISO 5211 mounting |
Operating lever | Lever (black or yellow) |
Antistatic device | Integrated from DN25 (optional for DN15–20) |
Flange drilling | Metric drilling – smooth pass-through flanges |
Applications | ON/OFF shut-off for chemical, food, gas, water, vacuum, and steam fluids |
Filter by:
| Code | Description | Nominal Diameter (DN) | Material | Coupling Connection | Actuation | Brand | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|
| EFFEBI28810015 | Valvola a sfera Moon A105/INOX/PTFE PN16/40 DN15 con leva | DN15 - 1/2 inch | ASTM A 105 / LF2 | Wafer | Lever | Effebi | Available | 76,00 € |
|
| EFFEBI28810020 | Valvola a sfera Moon A105/INOX/PTFE PN16/40 DN20 con leva | DN20 - 3/4 inch | ASTM A 105 / LF2 | Wafer | Lever | Effebi | Available | 80,00 € |
|
| EFFEBI28810025 | Valvola a sfera Moon A105/INOX/PTFE PN16/40 DN25 con leva | DN25 - 1 inch | ASTM A 105 / LF2 | Wafer | Lever | Effebi | Available | 92,00 € |
|
| EFFEBI28810032 | Valvola a sfera Moon A105/INOX/PTFE PN16/40 DN32 con leva | DN32 - 1 1/4 inch | ASTM A 105 / LF2 | Wafer | Lever | Effebi | Limited quantity | 113,00 € |
|
| EFFEBI28810040 | Valvola a sfera Moon A105/INOX/PTFE PN16/40 DN40 con leva | DN40 - 1 1/2 inches | ASTM A 105 / LF2 | Wafer | Lever | Effebi | Limited quantity | 148,00 € |
|
| EFFEBI28810050 | Valvola a sfera Moon A105/INOX/PTFE PN16/40 DN50 con leva | DN50 - 2 inches | ASTM A 105 / LF2 | Wafer | Lever | Effebi | Limited quantity | 169,00 € |
|
| EFFEBI28810065 | Valvola a sfera Moon A105/INOX/PTFE PN16 DN65 con leva | DN65 - 2 1/2 inches | ASTM A 105 / LF2 | Wafer | Lever | Effebi | Limited quantity | 284,00 € |
|
| EFFEBI28810080 | Valvola a sfera Moon A105/INOX/PTFE PN16 DN80 con leva | DN80 - 3 inches | ASTM A 105 / LF2 | Wafer | Lever | Effebi | Limited quantity | 366,00 € |
|
| EFFEBI28810100 | Valvola a sfera Moon A105/INOX/PTFE PN16 DN100 con leva | DN100 - 4 inches | ASTM A 105 / LF2 | Wafer | Lever | Effebi | Limited quantity | 666,00 € |
|
