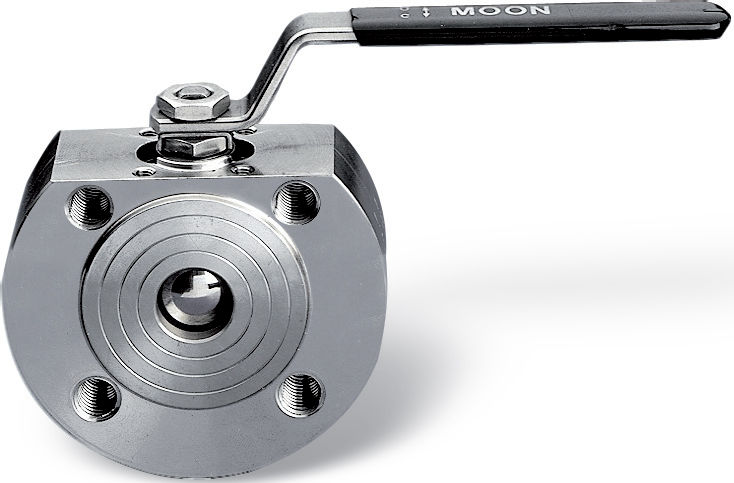

316 stainless steel wafer ball valves with lever are engineered for industrial systems requiring reliability and compact design. Constructed in AISI 316 stainless steel with PTFE seats, they offer excellent resistance to corrosion and chemical agents. With wafer PN16/40 connections and sizes from DN15 to DN100, these valves ensure smooth operation, secure sealing, and long-lasting performance in hydraulic, chemical, and process applications.
Parameter | Value |
|---|---|
Type | Wafer ball valve in AISI 316 stainless steel with threaded connection and lever |
Body material | AISI 316L (bar stock), AISI 316 (cast) |
Available materials | AISI 316L, AISI 316, AISI 304 |
Ball material | AISI 316 (DN15–20), AISI 304 (DN25–100) |
Stem material | AISI 316 |
Seat material | PTFE, PTFE+15% fiberglass, PTFE+carbographite, PE-HD |
Thread / connections | Compatible with UNI-EN 1092 and DIN2501 BL.1 flanges |
Available diameters | DN15 ÷ DN100 |
Nominal pressure | PN16/40 (bar stock), PN16 (cast) |
Temperature limits | -20°C ÷ +180°C (PTFE) |
Reference standards | BS EN ISO 17292:2004, ISO 5211 |
Certifications | FIRE SAFE (BS 6755, API 6FA, API 607), DVGW gas, TÜV TA Luft |
Sealing system | Triple stem labyrinth seal with cup springs |
Operating lever | Lever (available in black or yellow) |
Antistatic device | Integrated from DN25 (optional for DN15–20) |
Top connection | ISO 5211 |
Flange drilling | Metric – smooth pass-through flanges |
Applications | ON/OFF shut-off for gas, air, water, vacuum, steam, chemical and food fluids |
Filter by:
| Code | Description | Nominal Diameter (DN) | Nominal Pressure (PN) | Material | Coupling Connection | Actuation | Brand | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| EFFEBI28710015 | Valvola a sfera Moon Inox 316/316/PTFE PN16/40 DN15 con leva | DN15 - 1/2 inch | 16/40 | 316 stainless steel | Wafer | Lever | Effebi | Not available | 138,00 € |
|
| EFFEBI28710020 | Valvola a sfera Moon Inox 316/316/PTFE PN16/40 DN20 con leva | DN20 - 3/4 inch | 16/40 | 316 stainless steel | Wafer | Lever | Effebi | Available | 165,00 € |
|
| EFFEBI28710025 | Valvola a sfera Moon Inox 316/316/PTFE PN16/40 DN25 con leva | DN25 - 1 inch | 16/40 | 316 stainless steel | Wafer | Lever | Effebi | Available | 186,00 € |
|
| EFFEBI28710032 | Valvola a sfera Moon Inox 316/316/PTFE PN16/40 DN32 con leva | DN32 - 1 1/4 inch | 16/40 | 316 stainless steel | Wafer | Lever | Effebi | Available | 272,00 € |
|
| EFFEBI28710040 | Valvola a sfera Moon Inox 316/316/PTFE PN16 DN40 con leva | DN40 - 1 1/2 inches | 16 | 316 stainless steel | Wafer | Lever | Effebi | Available | 278,00 € |
|
| EFFEBI28710050 | Valvola a sfera Moon Inox 316/316/PTFE PN16 DN50 con leva | DN50 - 2 inches | 16 | 316 stainless steel | Wafer | Lever | Effebi | Available | 322,00 € |
|
| EFFEBI28710065 | Valvola a sfera Moon Inox 316/316/PTFE PN16 DN65 con leva | DN65 - 2 1/2 inches | 16 | 316 stainless steel | Wafer | Lever | Effebi | Limited quantity | 503,00 € |
|
| EFFEBI28710080 | Valvola a sfera Moon Inox 316/316/PTFE PN16 DN80 con leva | DN80 - 3 inches | 16 | 316 stainless steel | Wafer | Lever | Effebi | Limited quantity | 648,00 € |
|
| EFFEBI28710100 | Valvola a sfera Moon Inox 316/316/PTFE PN16 DN100 con leva | DN100 - 4 inches | 16 | 316 stainless steel | Wafer | Lever | Effebi | Limited quantity | 865,00 € |
|
