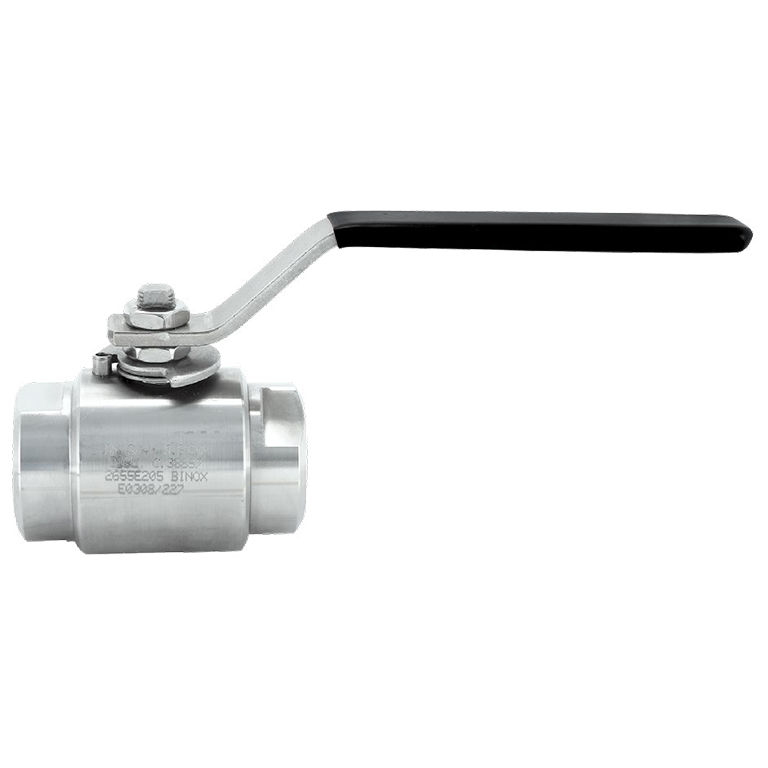

Stainless steel 316 threaded ball valves with lever provide reliability, durability, and high performance in hydraulic and industrial applications. Made from AISI 316 (A351-CF8M), they offer excellent corrosion resistance and secure sealing. Available with female (FF) and male (MF) threads from 1/4" to 3", these valves ensure smooth and safe operation, ideal for water, gas, and fluids even in aggressive environments.
Parametro | Valore |
|---|---|
Tipo | Valvola a sfera in acciaio inox a 2 vie filettata con leva |
Materiale corpo | Acciaio inox AISI 316 (A351 - CF8M) |
Materiale sfera | Acciaio inox AISI 316 |
Materiale stelo | Acciaio inox AISI 316 |
Guarnizioni standard | PTFE, PTFE+15% vetro, PTFE+carbografite, PE-HD |
Tenuta superiore | Tripla tenuta stelo a labirinto con molle a tazza |
Attacchi filettati | F/F, M/F (anche NPT ANSI B1.20.1 su richiesta) |
Norma filettatura | UNI ISO 7/1 (UNI EN 10226) - DIN2999 |
Pressione nominale | 100 bar (1/4”–1”), 40 bar (1”1/4–3”) |
Limiti di temperatura | -20°C / +150°C (fino a +180°C con CRB) |
Certificazioni | DVGW (gas), TÜV TA Luft, PED, ATEX, DM 174 (a richiesta) |
Utilizzo | Chimici, gas, acqua, vuoto, impianti idraulici e pneumatici |
Organo di manovra | Leva (disponibile in nero o giallo) |
Dispositivo di bloccaggio | Presente su 2”1/2 e 3” con basetta ISO 5211 |
Vuoto dichiarato | 800 mbar |
Optional | Valvole sgrassate, valvole per ossigeno, prolunghe stelo |
Gamma dimensionale (DN) | Da 1/4” a 3” |
Filter by:
| Code | Description | Nominal Diameter (DN) | Material | Coupling Connection | Actuation | Brand | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|
| EFFEBI2601012 | Valvola a sfera Alba Inox 316 FF 1/2" con leva | DN15 - 1/2 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 46,00 € |
|
| EFFEBI2601014 | Valvola a sfera Alba Inox 316 FF 1/4" con leva | DN8 - 1/4 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 45,00 € |
|
| EFFEBI2601034 | Valvola a sfera Alba Inox 316 FF 3/4" con leva | DN20 - 3/4 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 72,00 € |
|
| EFFEBI2601038 | Valvola a sfera Alba Inox 316 FF 3/8" con leva | DN10 - 3/8 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 45,00 € |
|
| EFFEBI2601100 | Valvola a sfera Alba Inox 316 FF 1" con leva | DN25 - 1 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 71,00 € |
|
| EFFEBI2601112 | Valvola a sfera Alba Inox 316 FF 1.1/2" con leva | DN40 - 1 1/2 inches | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 119,00 € |
|
| EFFEBI2601114 | Valvola a sfera Alba Inox 316 FF 1.1/4" con leva | DN32 - 1 1/4 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 94,00 € |
|
| EFFEBI2601200 | Valvola a sfera Alba Inox 316 FF 2" con leva | DN50 - 2 inches | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 164,00 € |
|
| EFFEBI2601212 | Valvola a sfera Alba Inox 316 MF 2.1/2" con leva | DN65 - 2 1/2 inches | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 367,00 € |
|
| EFFEBI2601300 | Valvola a sfera Alba Inox 316 MF 3" con leva | DN80 - 3 inches | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 483,00 € |
|
| EFFEBI2602012 | Valvola a sfera Alba Inox 316 MF 1/2" con leva | DN15 - 1/2 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 50,00 € |
|
| EFFEBI2602014 | Valvola a sfera Alba Inox 316 MF 1/4" con leva | DN8 - 1/4 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 49,00 € |
|
| EFFEBI2602034 | Valvola a sfera Alba Inox 316 MF 3/4" con leva | DN20 - 3/4 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 78,00 € |
|
| EFFEBI2602038 | Valvola a sfera Alba Inox 316 MF 3/8" con leva | DN10 - 3/8 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 49,00 € |
|
| EFFEBI2602100 | Valvola a sfera Alba Inox 316 MF 1" con leva | DN25 - 1 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 78,00 € |
|
| EFFEBI2602112 | Valvola a sfera Alba Inox 316 MF 1.1/2" con leva | DN40 - 1 1/2 inches | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 135,00 € |
|
| EFFEBI2602114 | Valvola a sfera Alba Inox 316 MF 1.1/4" con leva | DN32 - 1 1/4 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 101,00 € |
|
| EFFEBI2602200 | Valvola a sfera Alba Inox 316 MF 2" con leva | DN50 - 2 inches | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 178,00 € |
|
| EFFEBI2611012 | Valvola a sfera Alba Inox 316 FF 1/2" con farfalla | DN15 - 1/2 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 46,00 € |
|
| EFFEBI2611014 | Valvola a sfera Alba Inox 316 FF 1/4" con farfalla | DN8 - 1/4 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 45,00 € |
|
| EFFEBI2611034 | Valvola a sfera Alba Inox 316 FF 3/4" con farfalla | DN20 - 3/4 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 72,00 € |
|
| EFFEBI2611038 | Valvola a sfera Alba Inox 316 FF 3/8" con farfalla | DN10 - 3/8 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 45,00 € |
|
| EFFEBI2611100 | Valvola a sfera Alba Inox 316 FF 1" con farfalla | DN25 - 1 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Not available | 71,00 € |
|
| EFFEBI2612012 | Valvola a sfera Alba Inox 316 MF 1/2" con farfalla | DN15 - 1/2 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 50,00 € |
|
| EFFEBI2612014 | Valvola a sfera Alba Inox 316 MF 1/4" con farfalla | DN8 - 1/4 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 49,00 € |
|
| EFFEBI2612034 | Valvola a sfera Alba Inox 316 MF 3/4" con farfalla | DN20 - 3/4 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 78,00 € |
|
| EFFEBI2612038 | Valvola a sfera Alba Inox 316 MF 3/8" con farfalla | DN10 - 3/8 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Available | 49,00 € |
|
| EFFEBI2612100 | Valvola a sfera Alba Inox 316 MF 1" con farfalla | DN25 - 1 inch | A351 - CF8M (AISI 316) | Threaded | Lever | Effebi | Limited quantity | 78,00 € |
|
