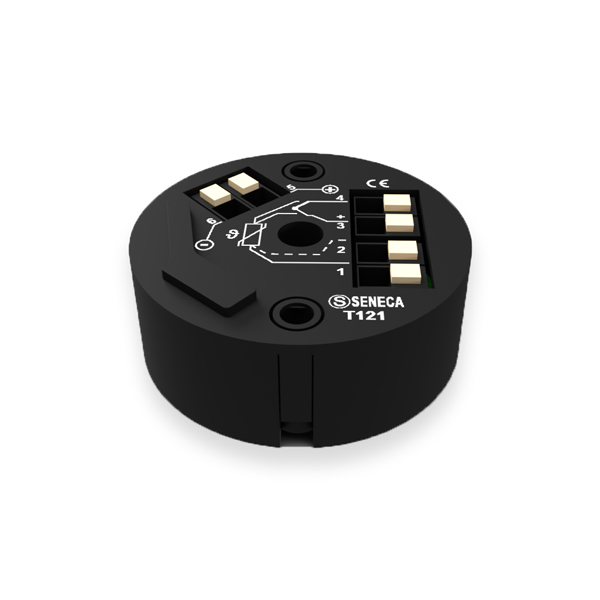

T121

Name: T121
SKU: T121
Availability: InStock

Isolation : 1,5 kVac

Brand : SENECA

Power Supply : 7..30 Vdc (loop powered)

Input : Cu50, Cu100, Ni100, Ni120, Pt100, Pt500, Pt1000, TC J , K, R, S, T, B, E, N, L, mV, Ω

Certifications : CE, Atex Zone 2

Power supply	5..30 Vdc (loop powered)
Insulation	1,5 kVac
Response time	<1 s
Accuracy Class	0,1% (min 0,1°C for RTD and 1°C for TC)

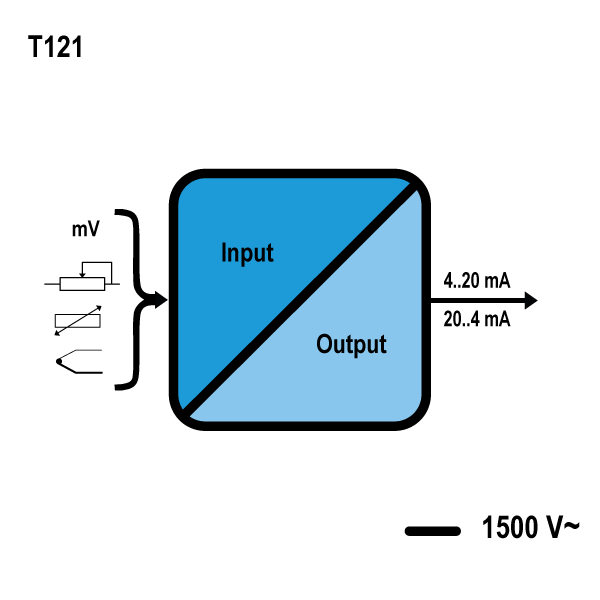

Input type	Cu50, Cu100 Pt100, Pt500, Pt1000 Ni100, Ni120, Ni1000 TC J , K, R, S, T, B, E, N, L; input impedance 10 MΩ Potentiometer: 500 Ω..100 kΩ Voltage: -150..+150 mV; input impedance 10 MΩ Resistance 0..+400 (1.760) Ω
Output channel	CURRENT (mA) 4..20, 20..4 mA (2-wire)
Programming	EASY SETUP software (Start / Full Scale, Rejection, RTD Type, Resistance cables, overrange etc.)
Operating temperature	-40..+85°C
Connections	Spring clamps
Dimension (ØxH)	Ø 43,7 x 20 mm
Standard	CE, ATEX
Norms	EN 61000-6-4, EN 61000-6-2

Filter by:

Use the filters to narrow your search, select the desired quantity and add the product to the cart.

▼

▼

▼

▼

▼

Code	Description	Isolation	Brand	Power Supply	Input	Certifications	Availability	Your Price	Add
T121	Trasmettitore di temperatura universale isolato standard	1,5 kVac	SENECA	7..30 Vdc (loop powered)	Cu50, Cu100, Ni100, Ni120, Pt100, Pt500, Pt1000, TC J , K, R, S, T, B, E, N, L, mV, Ω	CE, Atex Zone 2	Available	82,00 €
T121-C	Trasmettitore di temperatura univ. isolato calibrato	1,5 kVac	SENECA	7..30 Vdc (loop powered)	Cu50, Cu100, Ni100, Ni120, Pt100, Pt500, Pt1000, TC J , K, R, S, T, B, E, N, L, mV, Ω	CE, Atex Zone 2	Not available	92,00 €
