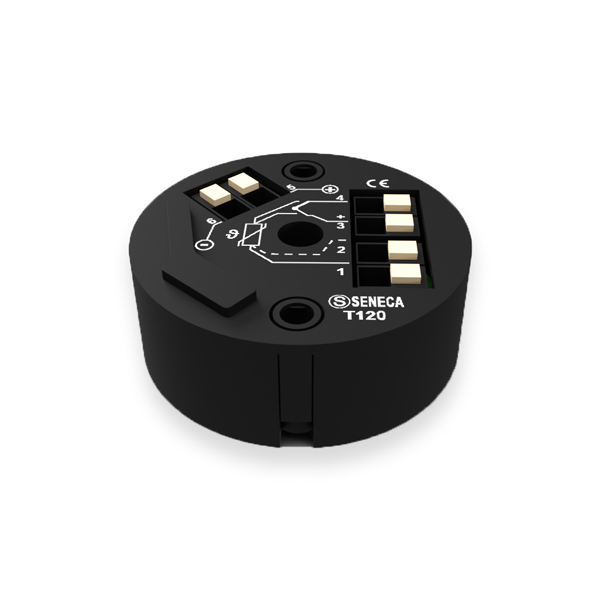

T120

Power supply

5..30 Vdc (loop powered)

Response time

<220 ms (<620 ms with rejection 50-60 Hz)

Accuracy Class

0,1%

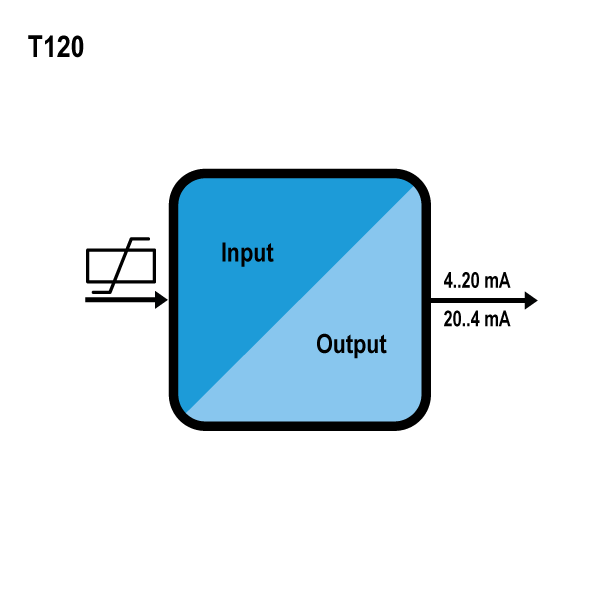

Input channel

• Pt100
Standard: EN 60751/A2 (ITS-90)
Measuring range: -200..+650°C
Minimum Span: 20°C
2,3,4-wire connection
• Ni100
Measuring range: -60..+650°C
Minimum Span: 20°C
2,3,4-wire connection

Output channel

CURRENT (mA) 4..20, 20..4 mA (2-wire)

Thermal drift

< 100 ppm (30 ppm tipical)

Programming

EASY SETUP software (programming kit: start / end of scale measurement, connection and RTD type, rejection, measurement filter, cable resistance, fault / over-range output)

Operating temperature

-40..+85°C

Connections

Spring clamps

Dimension (ØxH)

Ø 43,7 x 20 mm

Standard

CE

Norms

EN 61000-6-4, EN 61000-6-2
