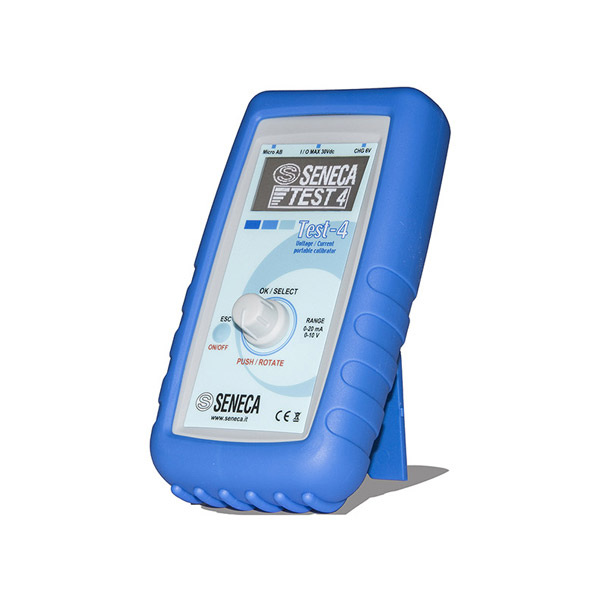

TEST-4 supports calibration, lab tests, and simulation of analog signals controlled by PLCs, controllers, or data acquisition systems. Total accuracy <0.1%, resolution µA/mV. Simulates voltage and current ramps (active/passive). Powered by 220 V or 2 NiMh batteries, average autonomy 20 h.
Package content:
TEST-4 unit
a pair of tips
2 Ni-Mh stylus batteries
recharging power supply
shockproof carrying case
Description: | Voltage / Current simulator meter (handheld) |
Precision class: | 0.1% |
Voltage Meter / Generator: | 0–10 V |
Current Meter / Generator: | 0–20 mA |
Functions setting: | by encoder button |
Display: | High-luminosity OLED display, 128x64 points |
Languages settings: | Italian, English, German, French, Spanish |
Supply: | Ni-Mh 2500 mA rechargeable batteries |
Switch-Off option: | ON / OFF |
MicroUSB Interface: | for future software implementations |
Filter by:
| Code | Description | Brand | Addictional Functions | Managed Signals | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|
| TEST-4 | Generatore segnale, misuratore V-mA con simulaz. rampe | SENECA | Ramp Simulation | 0..11 V; 0..21mA - Measurement/Generation | Available | 453,00 € |
|

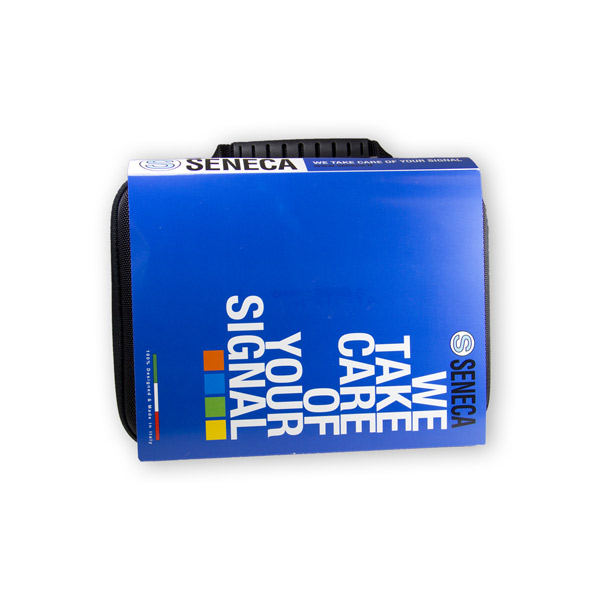

| TEST-4-C | Valigetta per trasporto e protezione TEST-4 | SENECA | - | - | Limited quantity | 61,00 € |
|
| TEST-4-LAT | Certificato di taratura LAT Accredia TEST-4 | SENECA | - | - | Not available | 590,00 € |
|
| TEST-4-PK | Precision Kit (set puntali e pinze a cocc.) per Test-4 | SENECA | - | - | Not available | 57,00 € |
|
| TEST-4-PWR | Alimentatore per Test-4 | SENECA | - | - | Limited quantity | 22,00 € |
|

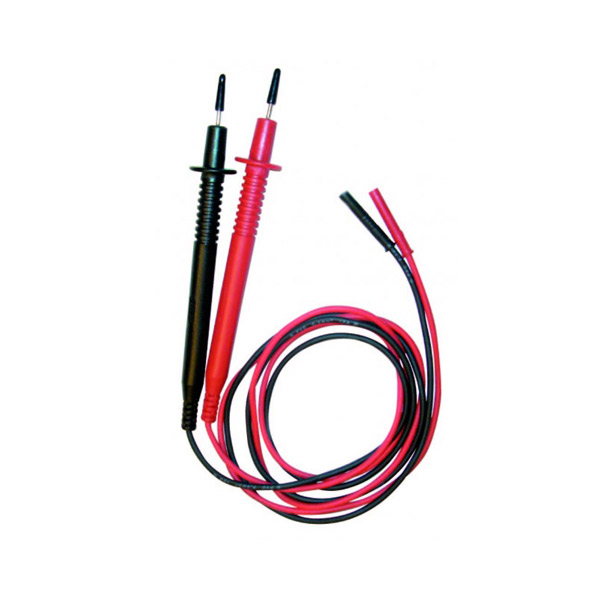

| TEST-4-R | Set puntali di precisione per Test-4 | SENECA | - | - | Limited quantity | 38,50 € |
|
| TEST-4-T | Rapporto / Servizio di taratura interna TEST-4 | SENECA | - | - | Not available | 95,00 € |
|
