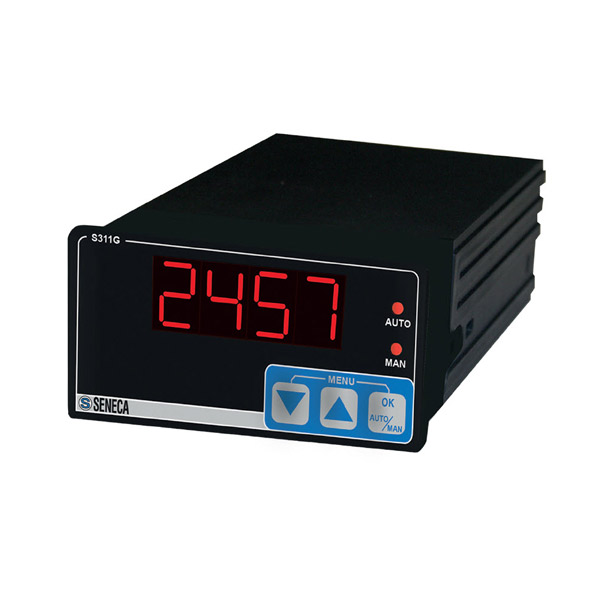

Universal analog input Indicator / Generator

Power Supply

80..265 Vac (-H versions) 10..40 Vdc/19-28 Vac (-L versions)

Power Transducers

Max 18 V, 25 mA

Max Consumption

1,5 W

Insulation

1.500 Vac

Noise rejection

50..60 Hz

Communication interface

RS485, ModBUS RTU, max 32 nodes (optional board)

Memory

Data memory, 10 years EEPROM

Operating temperature

 -10..+60°C

Case

PPO self-extinguish DIN 43700

Front protecion degree

IP65

Terminals

Removable, pitch 3,5 – 5,08 mm

Dimension WxHxD

98,5x44,5x90,5 mm

Cut-out dimension

92x45 mm

Weight

200 g

Settings

Front keys, password protect access

Anti-bump filter

From 0 to 255 s

Calibration

Yes, factory setting

Manual Mode

Setpoint value visualization with output retransmission

Automatic Mode

Measured value visualization with output scaling and retransmission

Special functions

Manual / Automatic mode, signal generator, anti-bump filter

Norms

EN 61000-6-4, EN 61000-6-2, EN 61010

Approvals

CE

Display

4-digit LED, adjustable contrast

Status Indicators

2 LEDs (Automatic / Manual)

Buttons

3 control buttons

Accuracy

0,1%

Stability

0,01%/K

Linearity

<0,1%

EMI

<1%

Input channels

1

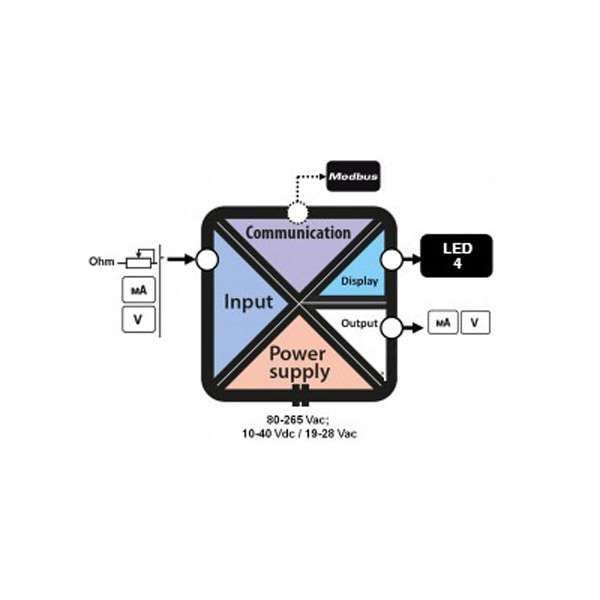

Input channels type and range / Resolution

Voltage: 0..10 V (impedance 100kΩ)
Current (active/passive): 0..20mA (impedance 20Ω)
Potentiometer: 1..100kΩ (with 330Ω parallel resistor, exciting current 1,1mA)
14 bit, 10.000 points

Sampling frequency

2 Hz

Response time

700 ms

Output channels

1

Output channels type and range / Resolution

Tensione: 0..10 V (min 1KΩ)
Current (active/passive): 0..20 / 4..20 mA (max 500Ω)
2μA / 1mV - 10.000 points
