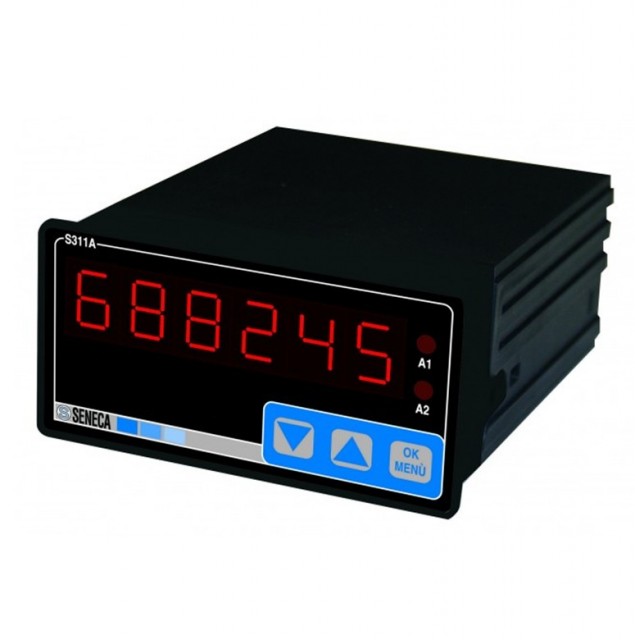

The S311A indicators are a new generation of LED displays with universal analog or temperature sensor inputs, supporting voltage, current, thermocouples, 2-, 3- or 4-wire RTDs, and potentiometers. They display instantaneous and/or integrated values and allow retransmission of the integrated value via isolated Open Collector digital output, with non-volatile memory. Programmable analog output, temperature display in °C or °F, and cold-junction compensation for thermocouples are available. Displays come in 4, 6, 8 or 11 (4+7) digits.
Description: | Universal analog input indicator - totalizer |
Display: | LED 4, 6, 8, 4+7 digit |
Analog universal input: | mA, V, potentiometer, Pt100, TC (J, K, R, S, T, B, E, N) |
Re-transmitted analog output: | mA, V |
Input totalization: | sì |
Dimensions: | 96x48x98 mm |
Power supply: | 80-265 Vac; 10-40 Vdc / 19-28 Vac |
Sensors supply: | 17 V |
Insulation: | 1.500 Vac |

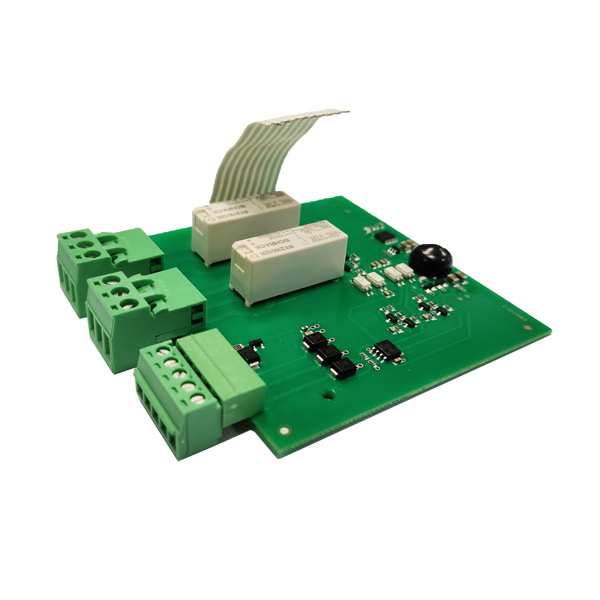

Optional boars: | nr 2 SPDT relay alarms, ModBUS RTU interface, reset input |
Filter by:
| Code | Description | Digit | Power Supply | Alarms / Modbus | Brand | Input | Addictional Functions | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| S311A-4-L | Ind.tot. 4 cifre ingr. univ. 10-40 Vdc / 19-28 Vac | 4 | 10..40 Vdc / 19..28 Vac | No | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 171,00 € |
|
| S311A-4-L-O | Ind.tot. 4 cfr ingr.univ. 10-40Vdc/19-28 Vac scheda opz. | 4 | 10..40 Vdc / 19..28 Vac | Yes | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 225,00 € |
|
| S311A-4-H | Ind.tot. 4 cifre, ingresso univ. 80-265 Vac | 4 | 80..265 Vac | No | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 177,00 € |
|
| S311A-4-H-O | Ind.tot. 4 cifre, ingresso univ. 80-265 Vac, scheda opz. | 4 | 80..265 Vac | Yes | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 225,00 € |
|
| S311A-6-L | Ind.tot. 6 cifre ingr. univ. 10-40 Vdc / 19-28 Vac | 6 | 10..40 Vdc / 19..28 Vac | No | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 171,00 € |
|
| S311A-6-L-O | Ind.tot. 6 cfr ingr.univ. 10-40Vdc/19-28Vac scheda opz. | 6 | 10..40 Vdc / 19..28 Vac | Yes | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 225,00 € |
|
| S311A-6-H | Ind.tot. 6 cifre, ingresso univ. 80-265 Vac | 6 | 80..265 Vac | No | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 187,00 € |
|
| S311A-6-H-O | Ind.tot. 6 cifre, ingresso univ. 80-265 Vac, scheda opz. | 6 | 80..265 Vac | Yes | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 241,00 € |
|
| S311A-8-L | Ind.tot. 8 cifre ingr. univ. 10-40 Vdc / 19-28 Vac | 8 | 10..40 Vdc / 19..28 Vac | No | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 171,00 € |
|
| S311A-8-L-O | Ind.tot. 8 cfr ingr.univ. 10-40Vdc/19-28Vac scheda opz. | 8 | 10..40 Vdc / 19..28 Vac | Yes | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 241,00 € |
|
| S311A-8-H | Ind.tot. 8 cifre ingr. univ. 80-265 Vac | 8 | 80..265 Vac | No | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 198,00 € |
|
| S311A-8-H-O | Ind.tot. 8 cifre ingr. univ. 80-265 Vac, scheda opz. | 8 | 80..265 Vac | Yes | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 241,00 € |
|
| S311A-11-L | Ind.tot. 11 cifre ingr. univ. 10-40 Vdc / 19-28 Vac | 11 | 10..40 Vdc / 19..28 Vac | No | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 284,00 € |
|
| S311A-11-L-O | Ind.tot. 11 cfr ingr.univ. 10-40Vdc/19-28Vac scheda opz. | 11 | 10..40 Vdc / 19..28 Vac | Yes | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 311,00 € |
|
| S311A-11-H | Ind.tot. 11 cifre, ingresso univ. 80-265 Vac | 11 | 80..265 Vac | No | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 284,00 € |
|
| S311A-11-H-O | Ind.tot. 11 cifre, ingresso univ. 80-265 Vac scheda opz. | 11 | 80..265 Vac | Yes | SENECA | mA, V, Ohm, Pt100, TC J, K, R, S, T, B, E, N | Totalizer | Not available | 311,00 € |
|
