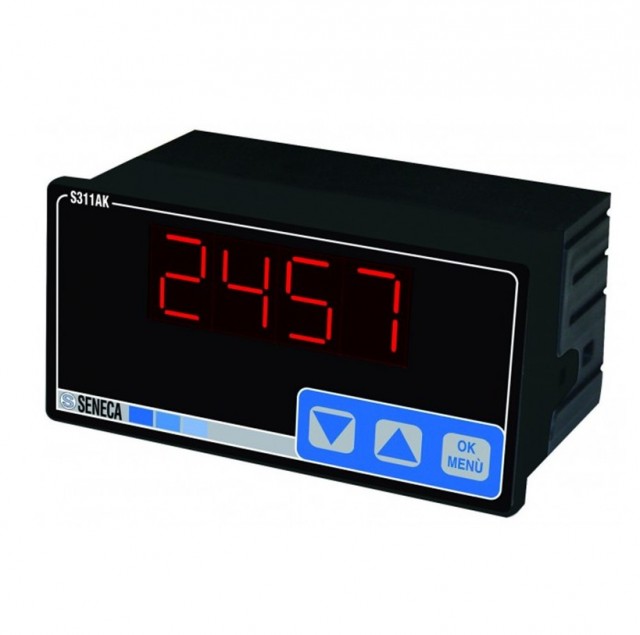

The S311AK is a 4-digit indicator designed for highly accurate analog measurements, with a maximum error of 0.05%, 16-bit resolution, and thermal stability of 0.005%/°K.
It accepts voltage (0-10 V) and current (0-20 mA) signals, powers measurement loops up to 16 V/25 mA, and features a compact 40 mm depth.
Input and display parameters are easily programmable via front panel buttons and protected by a password.
The 4-digit display shows measured values and can be scaled as needed.
With 1500 Vac galvanic isolation between measurement and power supply and IP65 protection (gasket included), the S311AK ensures reliable and safe performance in industrial applications.
Description: | 4 digit display with I/V analog input, high accuracy class |
Accuracy: | 0,05% |
A/D converter: | 16 bit |
Protection degree: | IP65 |
Thermal drift: | 0,005%/°K |
Max power consumption: | < 0,9 W |
Loop power supply: | yes |
Power supply: | 10-40 Vdc, 19-28 Vac |
Input type: | mA, V |
Display: | 4 digit, LED |

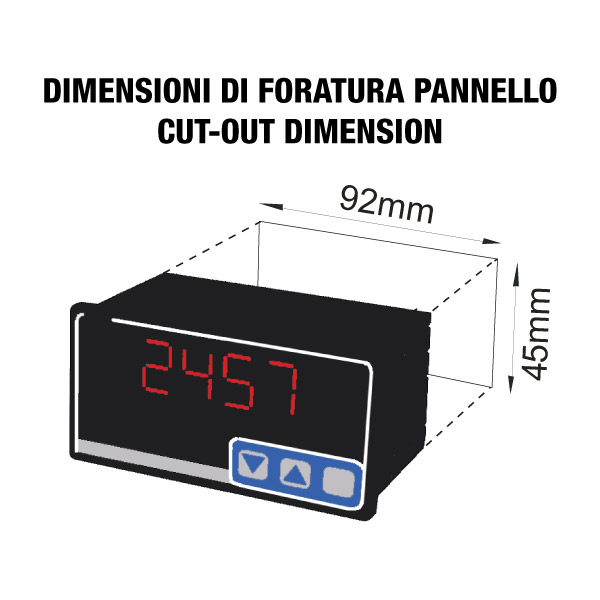

Dimension: | 96x48x40 mm |
Programming: | Front key menu |
Filter by:
| Code | Description | Digit | Power Supply | Alarms / Modbus | Brand | Input | Addictional Functions | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| S311G-4-H | Ind. Gen. con ing. analogico univ. a 4 cifre, 80-265 Vac | 4 | 80..265 Vac | No | SENECA | mA, V, Ohm | Signal Generator | Limited quantity | 205,00 € |
|
| S311G-4-H-O | Ind. Gen. con AI univ. 4 cifre, 80-265 Vac, scheda opz. | 4 | 80..265 Vac | Yes | SENECA | mA, V, Ohm | Signal Generator | Not available | 243,00 € |
|
| S311G-4-L | Ind. Gen. con AI universale, 4 cifre, 10-40 Vdc / 19-28 Vac | 4 | 10..40 Vdc / 19..28 Vac | No | SENECA | mA, V, Ohm | Signal Generator | Available | 187,00 € |
|
| S311G-4-L-O | Ind. Gen. AI univ. 4 cifre, 10-40 Vdc/19-28 Vac, scheda opz. | 4 | 10..40 Vdc / 19..28 Vac | Yes | SENECA | mA, V, Ohm | Signal Generator | Not available | 247,00 € |
|
