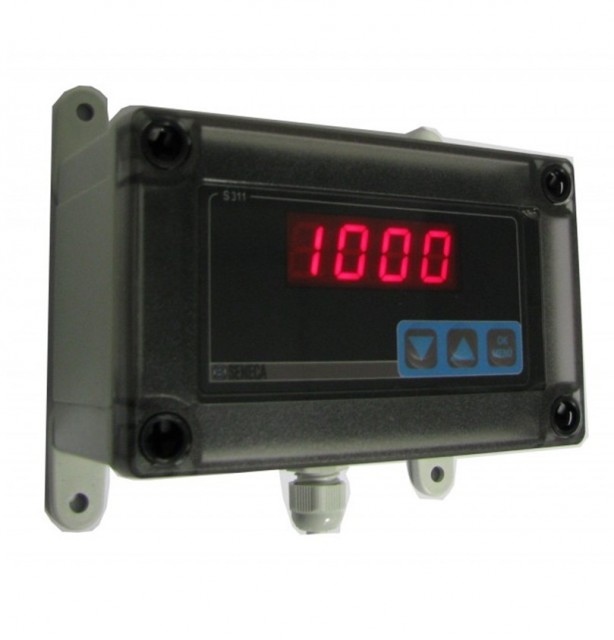

The S311AK-IP66 is a 4-digit indicator with IP66 case designed for highly accurate analog measurements, with a maximum error of 0.05%, 16-bit resolution, and thermal stability of 0.005%/°K.
It accepts voltage (0-10 V) and current (0-20 mA) signals, powers measurement loops up to 16 V/25 mA, and features a compact 40 mm depth.
Input and display parameters are easily programmable via front panel buttons and protected by a password.
The 4-digit display shows measured values and can be scaled as needed.
With 1500 Vac galvanic isolation between measurement and power supply and IP65 protection (gasket included), the S311AK ensures reliable and safe performance in industrial applications.
Description: | 4 digit display with I/V analog input, IP66 case |
High accuracy: | Max error 0,05% |
Max resolution: | 16 bit |
Thermal drift: | 0,005%/°K |
Analog input range: | Volage 0-10 V or current 0-20 mA, free setting (1-5 V, 4-20 mA, etc.) |
Loop power supply: | 16 V, 25 mA |
Power supply: | 10-40 Vdc, 19-28 Vac |
Case: | ABS, IP66, 130 x 80 x 60 mm |
Standard: | EN 50298, EN 60529, EN 62262, UL 94 HB, NEMA 1, 4, 4X, 6 |
Filter by:
| Code | Description | Digit | Power Supply | Alarms / Modbus | Brand | Input | Addictional Functions | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| S311AK-4-L | Indicatore 4 cfr ing. analogico, 10-40 Vdc, 19-28 Vac | 4 | 10..40 Vdc / 19..28 Vac | No | SENECA | mA, V | Totalizer | Available | 108,00 € |
|
| S311AK-4-L-IP66 | Indicatore 4 cfr ing. analogico, 10-40 Vdc, 19-28 Vac, IP66 | 4 | 10..40 Vdc / 19..28 Vac | No | SENECA | mA, V | Totalizer | Not available | 201,00 € |
|
| S311AK-4-L-IP66D | Ind. 4 cfr ing. analogico, 10-40 Vdc, 19-28 Vac, IP66 (x2) | 4 | 10..40 Vdc / 19..28 Vac | No | SENECA | mA, V | Totalizer | Not available | 319,00 € |
|
