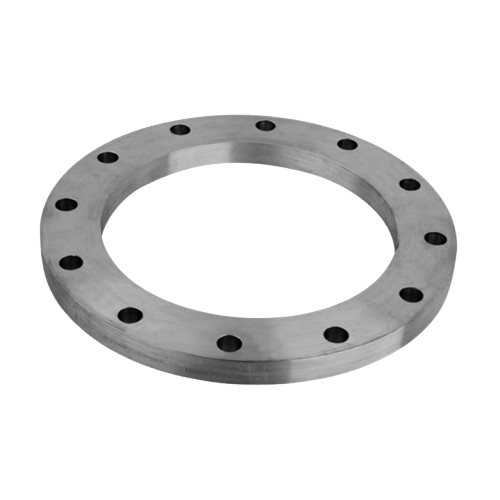

EN 1092-1 Type 01/A PN16 forged welding flat flanges, made of stainless steel (A182/F304, F304L, F316, F316L), ensure mechanical strength and corrosion resistance. Compliant with UNI 2278, they provide secure and durable connections for hydraulic, thermal, and process systems. Available in diameters from DN15 to DN300.
DN | D | d1 | b | Holes | Weight Kg | ||
|---|---|---|---|---|---|---|---|
a | f | Number of holes | |||||
From DN15 to DN50 identical dimensions with PN40 | |||||||
65 | 185 | 77.5 | 20 | 145 | 18 | 8(4)* | 3.1 |
80 | 200 | 90.5 | 20 | 160 | 18 | 8 | 3.8 |
100 | 220 | 116 | 22 | 180 | 18 | 8 | 4.8 |
125 | 250 | 141.5 | 22 | 210 | 18 | 8 | 6.4 |
150 | 285 | 170.5 | 24 | 240 | 22 | 8 | 8 |
200 | 340 | 221.5 | 26 | 295 | 22 | 12 | 10.3 |
250 | 405 | 276.5 | 29 | 355 | 26 | 12 | 17.5 |
300 | 460 | 327.5 | 32 | 410 | 26 | 12 | 20 |
350 | 520 | 359.5 | 35 | 470 | 26 | 16 | 30.5 |
400 | 580 | 411 | 38 | 525 | 30 | 16 | 37.5 |
450 | 640 | 462 | 42 | 585 | 30 | 20 | 43 |
500 | 715 | 513.5 | 46 | 650 | 33 | 20 | 52 |
600 | 840 | 616.5 | 55 | 770 | 36 | 20 | 72 |
700 | 910 | - | 63 | 840 | 36 | 24 | 90 |
800 | 1,025 | - | 74 | 950 | 39 | 24 | 117 |
900 | 1,125 | - | 82 | 1,050 | 39 | 28 | 130 |
1,000 | 1,255 | - | 90 | 1,170 | 42 | 28 | 165 |
Filter by:
| Code | Description | Nominal Diameter (DN) | Nominal Pressure (PN) | Material | Construction type | Brand | Norms | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| FX40022780015 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 15 A182/F304/F304L | DN15 - 1/2 inch | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Available | 11,00 € |
|
| FX40022780020 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 20 A182/F304/F304L | DN20 - 3/4 inch | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 16,00 € |
|
| FX40022780025 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 25 A182/F304/F304L | DN25 - 1 inch | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Available | 17,00 € |
|
| FX40022780032 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 32 A182/F304/F304L | DN32 - 1 1/4 inch | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 31,00 € |
|
| FX40022780040 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 40 A182/F304/F304L | DN40 - 1 1/2 inches | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 35,00 € |
|
| FX40022780050 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 50 A182/F304/F304L | DN50 - 2 inches | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 40,00 € |
|
| FX40022780065 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 65 A182/F304/F304L | DN65 - 2 1/2 inches | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Available | 41,00 € |
|
| FX40022780080 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 80 A182/F304/F304L | DN80 - 3 inches | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Available | 42,00 € |
|
| FX40022780100 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 100 A182/F304/F304L | DN100 - 4 inches | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 51,00 € |
|
| FX40022780125 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 125 A182/F304/F304L | DN125 - 5 inches | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Available | 61,00 € |
|
| FX40022780150 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 150 A182/F304/F304L | DN150 - 6 inches | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 69,00 € |
|
| FX40022780200 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 200 A182/F304/F304L | DN200 - 8 inches | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 95,00 € |
|
| FX40022780250 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 250 A182/F304/F304L | DN250 - 10 inches | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 130,00 € |
|
| FX40022780300 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 300 A182/F304/F304L | DN300 - 12 inches | 16 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 184,00 € |
|
| FX6022780015 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 15 A182/F316/F316L | DN15 - 1/2 inch | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Available | 17,00 € |
|
| FX6022780020 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 20 A182/F316/F316L | DN20 - 3/4 inch | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Available | 22,00 € |
|
| FX6022780025 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 25 A182/F316/F316L | DN25 - 1 inch | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Available | 26,00 € |
|
| FX6022780032 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 32 A182/F316/F316L | DN32 - 1 1/4 inch | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 42,00 € |
|
| FX6022780040 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 40 A182/F316/F316L | DN40 - 1 1/2 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Available | 40,00 € |
|
| FX6022780050 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 50 A182/F304/F304L | DN50 - 2 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 55,00 € |
|
| FX6022780065 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 65A182/F316/F316L 4 FORI | DN65 - 2 1/2 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 58,00 € |
|
| FX6022780065-8F | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 65 A182/F316/F316L 8 FORI | DN65 - 2 1/2 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | CONTACT HQ |
|
| FX6022780080 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 80 A182/F316/F316L | DN80 - 3 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 64,00 € |
|
| FX6022780100 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 100 A182/F316/F316L | DN100 - 4 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 66,00 € |
|
| FX6022780125 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 125 A182/F316/F316L | DN125 - 5 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 81,00 € |
|
| FX6022780150 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 150 A182/F316/F316L | DN150 - 6 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 100,00 € |
|
| FX6022780200 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 200 A182/F316/F316L | DN200 - 8 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 139,00 € |
|
| FX6022780250 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 250 A182/F316/F316L | DN250 - 10 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Limited quantity | 185,00 € |
|
| FX6022780300 | Flangia piana EN1092-1-01A/UNI 2278 PN16 DN 300 A182/F316/F316L | DN300 - 12 inches | 16 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2278) | Not available | 248,00 € |
|
