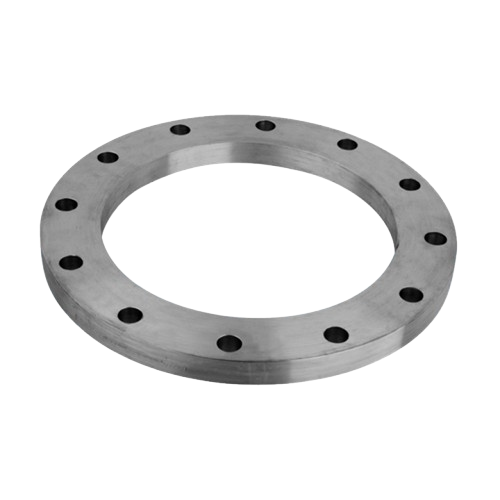

EN 1092-1 Type 01/A PN10 forged welding flat flanges in stainless steel (A182/F304, F304L, F316, F316L) ensure secure and durable connections in industrial, hydraulic, and process systems. Compliant with UNI 2277 and EN1092-1, they offer corrosion resistance and consistent performance in low-pressure applications. Available in DN200, DN250, and DN300.
DN | D | d1 | b | Holes | Weight (Kg) | ||
|---|---|---|---|---|---|---|---|
a | f | No. of holes | |||||
From DN15 to DN50 same dimensions with PN40 | |||||||
From DN65 to DN150 same dimensions with PN16 | |||||||
200 | 340 | 221.5 | 24 | 295 | 22 | 8 | 10.3 |
250 | 395 | 276.5 | 26 | 350 | 22 | 12 | 14 |
300 | 445 | 327.5 | 26 | 400 | 22 | 12 | 15.5 |
350 | 505 | 359.5 | 30 | 460 | 22 | 16 | 23 |
400 | 565 | 411 | 32 | 515 | 26 | 16 | 29 |
450 | 615 | 462 | 36 | 565 | 26 | 20 | 35 |
500 | 670 | 513.5 | 38 | 620 | 26 | 20 | 42 |
600 | 780 | 616.5 | 42 | 725 | 30 | 20 | 54 |
700 | 895 | - | - | 840 | 30 | 24 | 66 |
800 | 1,015 | - | - | 950 | 33 | 24 | 90 |
900 | 1,115 | - | - | 1,050 | 33 | 28 | 103 |
1,000 | 1,230 | - | - | 1,160 | 36 | 28 | 131 |
Filter by:
| Code | Description | Nominal Diameter (DN) | Nominal Pressure (PN) | Material | Construction type | Brand | Norms | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| FX40022770200 | Flangia piana EN1092-1-01A/UNI 2277 PN10 DN 200 A182/F304/F304L | DN200 - 8 inches | 10 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2277) | Limited quantity | 90,00 € |
|
| FX40022770250 | Flangia piana EN1092-1-01A/UNI 2277 PN10 DN 250 A182/F304/F304L | DN250 - 10 inches | 10 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2277) | Limited quantity | 118,00 € |
|
| FX40022770300 | Flangia piana EN1092-1-01A/UNI 2277 PN10 DN 300 A182/F304/F304L | DN300 - 12 inches | 10 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 2277) | Limited quantity | 135,00 € |
|
| FX6022770200 | Flangia piana EN1092-1-01A/UNI 2277 PN10 DN 200 A182/F316/F316L | DN200 - 8 inches | 10 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2277) | Not available | 129,00 € |
|
| FX6022770250 | Flangia piana EN1092-1-01A/UNI 2277 PN10 DN 250 A182/F316/F316L | DN250 - 10 inches | 10 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2277) | Not available | 164,00 € |
|
| FX6022770300 | Flangia piana EN1092-1-01A/UNI 2277 PN10 DN 300 A182/F316/F316L | DN300 - 12 inches | 10 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 2277) | Limited quantity | 184,00 € |
|
