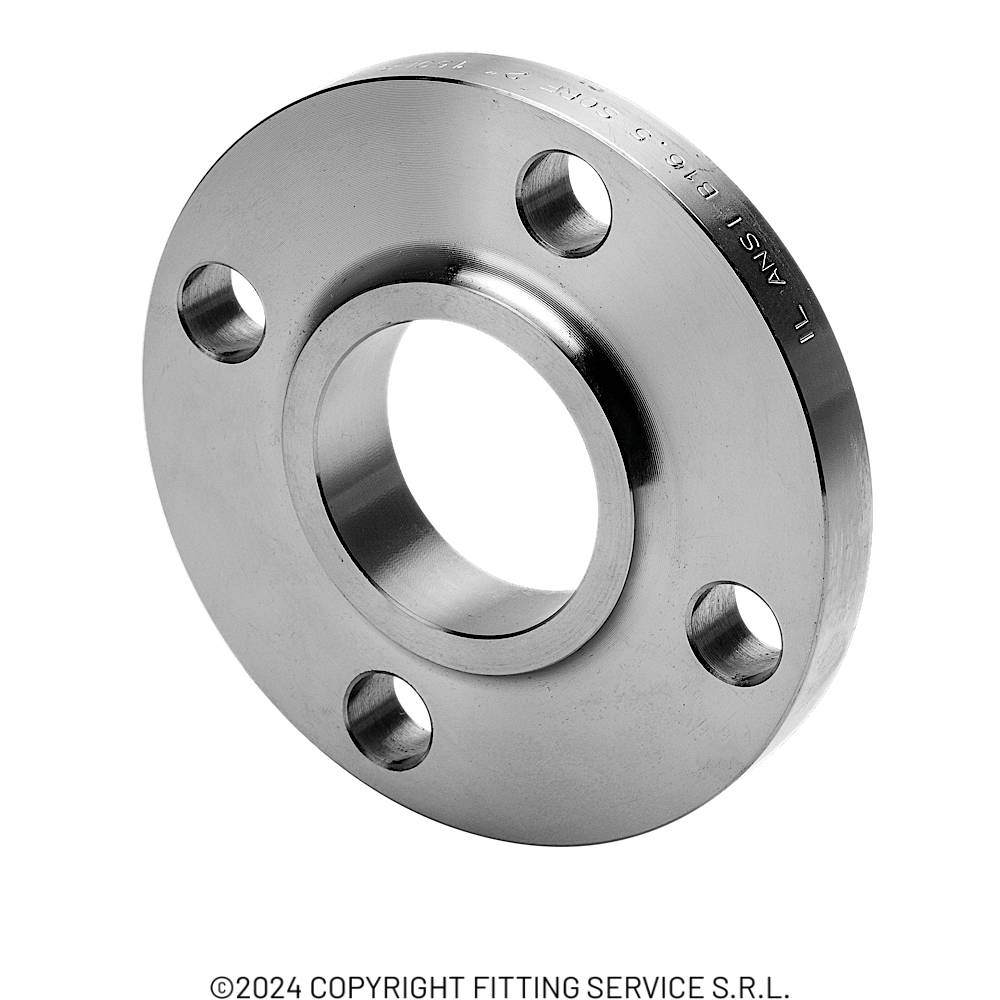

EN 1092-1 Type 13B PN16 threaded flanges (ex UNI 2254/29), made of stainless steel A182/F316/F316L, are designed for quick and secure connections without welding. Suitable for hydraulic, industrial, and process systems, they offer corrosion resistance and long-lasting performance. Available in sizes DN15 to DN80 with GAS threading, ensuring reliable and standard-compliant connections.
DN (inch) | Thread | D (mm) | E (mm) | h (mm) | b (mm) | a (mm) | j (mm) | f (mm) | Holes | Bolt | Weight (kg) | Material | Standard |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | G 21.3 | 65 | 95 | 22 | 16 | 35 | 45 | 2 | 4 | M12 | 0.8 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
3/4" | G 26.9 | 75 | 105 | 26 | 18 | 45 | 58 | 2 | 4 | M12 | 1.13 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
1" | G 33.7 | 85 | 115 | 28 | 18 | 52 | 68 | 2 | 4 | M12 | 1.37 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
1 1/4" | G 42.4 | 100 | 140 | 30 | 18 | 60 | 78 | 2 | 4 | M16 | 1.99 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
1 1/2" | G 48.3 | 110 | 150 | 32 | 18 | 70 | 88 | 3 | 4 | M16 | 2.35 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
2" | G 60.3 | 125 | 165 | 28 | 18 | 84 | 102 | 3 | 4 | M16 | 2.43 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
2 1/2" | G 76.1 | 145 | 185 | 32 | 18 | 104 | 122 | 3 | 4 | M16 | 3.18 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
3" | G 88.9 | 160 | 200 | 34 | 20 | 118 | 138 | 3 | 8 | M16 | 4.12 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
4" | G 114.3 | 180 | 220 | 40 | 20 | 140 | 158 | 3 | 8 | M16 | 4.47 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
5" | G 139.7 | 210 | 250 | 44 | 22 | 168 | 188 | 3 | 8 | M16 | 6.63 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
6" | G 168.3 | 240 | 285 | 44 | 22 | 195 | 212 | 3 | 8 | M20 | 8.49 | AISI 304L / 316L | EN 1092-1 Type 13B - ASTM A182 |
Filter by:
| Code | Description | Nominal Diameter (DN) | Nominal Pressure (PN) | Material | Construction type | Brand | Norms | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| FX60022540015 | Flangia filettata EN1092-1-13B/UNI 2254/29 DN15-1/2" GAS A182/F316/F316L | DN15 - 1/2 inch | 16 | A182/F316/F316L | Threaded | Generic | EN1092-1 (UNI 2254/29) | Available | 24,00 € |
|
| FX60022540020 | Flangia filettata EN1092-1-13B/UNI 2254/29 DN20-3/4" GAS A182/F316/F316L | DN20 - 3/4 inch | 16 | A182/F316/F316L | Threaded | Generic | EN1092-1 (UNI 2254/29) | Available | 35,00 € |
|
| FX60022540025 | Flangia filettata EN1092-1-13B/UNI 2254/29 DN25-1" GAS A182/F316/F316L | DN25 - 1 inch | 16 | A182/F316/F316L | Threaded | Generic | EN1092-1 (UNI 2254/29) | Limited quantity | 42,00 € |
|
| FX60022540032 | Flangia filettata EN1092-1-13B/UNI 2254/29 DN32-1.1/4" GAS A182/F316/F316L | DN32 - 1 1/4 inch | 16 | A182/F316/F316L | Threaded | Generic | EN1092-1 (UNI 2254/29) | Limited quantity | 50,00 € |
|
| FX60022540040 | Flangia filettata EN1092-1-13B/UNI 2254/29 DN40-1.1/2" GAS A182/F316/F316L | DN40 - 1 1/2 inches | 16 | A182/F316/F316L | Threaded | Generic | EN1092-1 (UNI 2254/29) | Limited quantity | 58,00 € |
|
| FX60022540050 | Flangia filettata EN1092-1-13B/UNI 2254/29 DN50-2" GAS A182/F316/F316L | DN50 - 2 inches | 16 | A182/F316/F316L | Threaded | Generic | EN1092-1 (UNI 2254/29) | Available | 66,00 € |
|
| FX60022540065 | Flangia filettata EN1092-1-13B/UNI 2254/29 DN65-2.1/2"GAS A182/F316/F316L | DN65 - 2 1/2 inches | 16 | A182/F316/F316L | Threaded | Generic | EN1092-1 (UNI 2254/29) | Not available | 66,00 € |
|
| FX60022540080 | Flangia filettata EN1092-1-13B/UNI 2254/29 DN80-3" GAS A182/F316/F316L | DN80 - 3 inches | 16 | A182/F316/F316L | Threaded | Generic | EN1092-1 (UNI 2254/29) | Limited quantity | 84,00 € |
|
