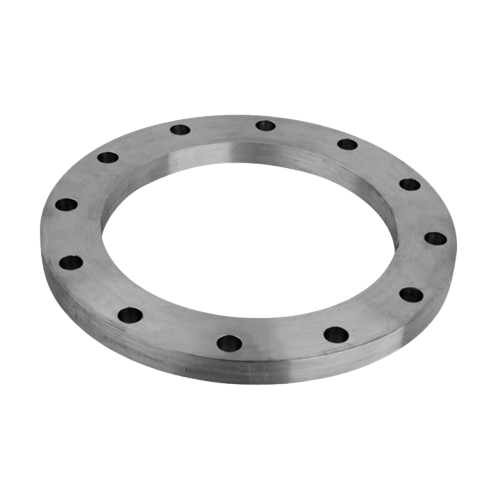

EN 1092-1 Type 01/A PN40 forged welding flat flanges, made of stainless steel (A182/F304L, A182/F316/F316L), are designed for high-pressure applications. They provide corrosion resistance and reliable connections for industrial, chemical, and process systems. Available in diameters from DN15 to DN100, ensuring durable and safe installation under demanding conditions.
DN | D | d1 | b | Holes | Weight (Kg) | ||
|---|---|---|---|---|---|---|---|
a | f | No. of holes | |||||
15 | 95 | 22 | 14 | 65 | 14 | 4 | 0.68 |
20 | 105 | 27.5 | 16 | 75 | 14 | 4 | 0.95 |
25 | 115 | 34.5 | 16 | 85 | 14 | 4 | 1.14 |
32 | 140 | 43.5 | 18 | 100 | 18 | 4 | 1.87 |
40 | 150 | 49.5 | 18 | 110 | 18 | 4 | 2.13 |
50 | 165 | 61.5 | 20 | 125 | 18 | 4 | 2.78 |
65 | 185 | 77.5 | 22 | 145 | 18 | 8 | 3.8 |
80 | 200 | 90.5 | 24 | 160 | 18 | 8 | 4.7 |
100 | 235 | 116 | 26 | 190 | 22 | 8 | 6.33 |
125 | 270 | 141.5 | 28 | 220 | 26 | 8 | 8.53 |
150 | 300 | 170.5 | 30 | 250 | 26 | 8 | 10.9 |
200 | 375 | 221.5 | 36 | 320 | 30 | 12 | 18 |
250 | 450 | 276.5 | 42 | 385 | 33 | 12 | 31.8 |
300 | 515 | 327.5 | 52 | 450 | 33 | 16 | 41.9 |
350 | 580 | 359.5 | 58 | 510 | 36 | 16 | 64.4 |
400 | 660 | 411 | 65 | 585 | 39 | 16 | 90.3 |
Filter by:
| Code | Description | Nominal Diameter (DN) | Nominal Pressure (PN) | Material | Construction type | Brand | Norms | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| FX40060840015 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 15 A182/F304L | DN15 - 1/2 inch | 40 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 11,00 € |
|
| FX40060840020 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 20 A182/F304L | DN20 - 3/4 inch | 40 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 16,00 € |
|
| FX40060840025 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 25 A182/F304L | DN25 - 1 inch | 40 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 17,00 € |
|
| FX40060840032 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 32 A182/F304L | DN32 - 1 1/4 inch | 40 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 31,00 € |
|
| FX40060840040 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 40 A182/F304L | DN40 - 1 1/2 inches | 40 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 6084) | Limited quantity | 35,00 € |
|
| FX40060840050 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 50 A182/F304L | DN50 - 2 inches | 40 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 40,00 € |
|
| FX40060840065 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 65 A182/F304L | DN65 - 2 1/2 inches | 40 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 45,00 € |
|
| FX40060840080 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 80 A182/F304L | DN80 - 3 inches | 40 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 6084) | Limited quantity | 57,00 € |
|
| FX40060840100 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 100 A182/F304L | DN100 - 4 inches | 40 | A182/F304/F304L | Flat | Intertubi | EN1092-1 (UNI 6084) | Limited quantity | 74,00 € |
|
| FX6060840015 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 15 A182/F316/F316L | DN15 - 1/2 inch | 40 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 17,00 € |
|
| FX6060840020 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 20 A182/F316/F316L | DN20 - 3/4 inch | 40 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 22,00 € |
|
| FX6060840025 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 25 A182/F316/F316L | DN25 - 1 inch | 40 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 26,00 € |
|
| FX6060840032 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 32 A182/F316/F316L | DN32 - 1 1/4 inch | 40 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 42,00 € |
|
| FX6060840040 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 40 A182/F316/F316L | DN40 - 1 1/2 inches | 40 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 6084) | Limited quantity | 40,00 € |
|
| FX6060840050 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 50 A182/F316/F316L | DN50 - 2 inches | 40 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 55,00 € |
|
| FX6060840065 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 65 A182/F316/F316L | DN65 - 2 1/2 inches | 40 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 67,00 € |
|
| FX6060840080 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 80 A182/F316/F316L | DN80 - 3 inches | 40 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 67,00 € |
|
| FX6060840100 | Flangia piana EN1092-1-01A/UNI 6084 PN40 DN 100 A182/F316/F316L | DN100 - 4 inches | 40 | A182/F316/F316L | Flat | Intertubi | EN1092-1 (UNI 6084) | Not available | 96,00 € |
|
