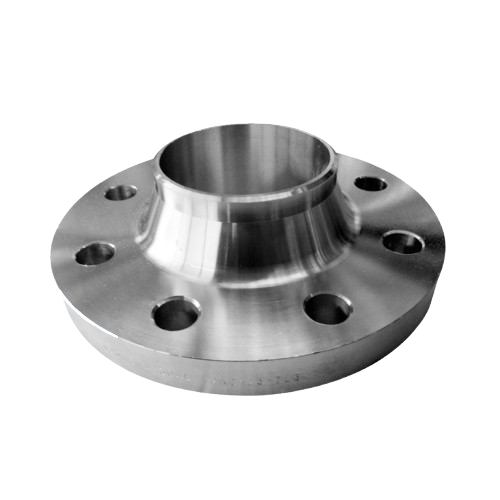

EN 1092-1 Type 11/B PN40 forged flanges with collar (ex DIN 2635), made of stainless steel A182/F304, F304L, F316, and F316L, are designed for high-pressure systems. The integrated collar ensures maximum mechanical strength, reliability, and secure connections. Suitable for industrial and process applications under demanding conditions, available in diameters from DN15 to DN100, fully compliant with international standards.
DN | A | C2 | R | H2 | N1 | H3 | S | No. of Holes | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
15 | 21.3 | 16 | 4 | 38 | 32 | 6 | 2.0 | 4 | 0.75 |
20 | 26.9 | 18 | 4 | 40 | 40 | 6 | 2.3 | 4 | 1.06 |
25 | 33.7 | 18 | 4 | 40 | 46 | 6 | 2.6 | 4 | 1.29 |
32 | 42.4 | 18 | 6 | 42 | 56 | 6 | 2.6 | 4 | 1.89 |
40 | 48.3 | 18 | 6 | 45 | 64 | 7 | 2.6 | 4 | 2.33 |
50 | 60.3 | 20 | 6 | 48 | 75 | 8 | 2.9 | 4 | 2.82 |
65 | 76.1 | 22 | 6 | 52 | 90 | 10 | 2.9 | 8 | 3.74 |
80 | 88.9 | 24 | 8 | 58 | 105 | 12 | 3.2 | 8 | 4.75 |
100 | 114.3 | 24 | 8 | 65 | 134 | 12 | 3.6 | 8 | 6.52 |
125 | 139.7 | 26 | 8 | 68 | 162 | 12 | 4.0 | 8 | 9.07 |
150 | 168.3 | 28 | 10 | 75 | 192 | 12 | 4.5 | 8 | 11.80 |
200 | 219.1 | 34 | 10 | 88 | 244 | 16 | 6.3 | 12 | 21.50 |
Filter by:
| Code | Description | Nominal Diameter (DN) | Nominal Pressure (PN) | Material | Construction type | Brand | Norms | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| FX40022840015 | Flangia con collare EN1092-1-11B/UNI 2284/29 PN40 DN 15 A182/F304/F304L | DN15 - 1/2 inch | 40 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 16,00 € |
|
| FX40022840020 | Flangia con collare EN1092-1-11B/UNI 2284/29 PN40 DN 20 A182/F304/F304L | DN20 - 3/4 inch | 40 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 20,00 € |
|
| FX40022840025 | Flangia con collare EN1092-1-11B/UNI 2284/29 PN40 DN 25 A182/F304/F304L | DN25 - 1 inch | 40 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 23,00 € |
|
| FX40022840032 | Flangia con collare EN1092-1-11B/UNI 2284/29 PN40 DN 32 A182/F304/F304L | DN32 - 1 1/4 inch | 40 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Available | 30,00 € |
|
| FX40022840040 | Flangia con collare EN1092-1-11B/UNI 2284/29 PN40 DN 40 A182/F304/F304L | DN40 - 1 1/2 inches | 40 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 38,00 € |
|
| FX40022840050 | Flangia con collare EN1092-1-11B/UNI 2284/29 PN40 DN 50 A182/F304/F304L | DN50 - 2 inches | 40 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 42,00 € |
|
| FX40022840065 | Flangia con collare EN1092-1-11B/UNI 2284/29 PN40 DN 65 A182/F304/F304L | DN65 - 2 1/2 inches | 40 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 60,00 € |
|
| FX40022840080 | Flangia con collare EN1092-1-11B/UNI 2284/29 PN40 DN 80 A182/F304/F304L | DN80 - 3 inches | 40 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 76,00 € |
|
| FX40022840100 | Flangia con collare EN1092-1-11B/UNI 2284/29 PN40 DN 100 A182/F304/F304L | DN100 - 4 inches | 40 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Not available | 75,00 € |
|
| FX6022840015 | Flangia con collare EN1092-1-11B/UNI 2284 PN40 DN 15 A182F316/316L | DN15 - 1/2 inch | 40 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2284) | Limited quantity | 20,00 € |
|
| FX6022840020 | Flangia con collare EN1092-1-11B/UNI 2284 PN40 DN 20 A182F316/316L | DN20 - 3/4 inch | 40 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2284) | Not available | 26,00 € |
|
| FX6022840025 | Flangia con collare EN1092-1-11B/UNI 2284 PN40 DN 25 A182F316/316L | DN25 - 1 inch | 40 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2284) | Limited quantity | 32,00 € |
|
| FX6022840032 | Flangia con collare EN1092-1-11B/UNI 2284 PN40 DN 32 A182F316/316L | DN32 - 1 1/4 inch | 40 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2284) | Limited quantity | 45,00 € |
|
| FX6022840040 | Flangia con collare EN1092-1-11B/UNI 2284 PN40 DN 40 A182F316/316L | DN40 - 1 1/2 inches | 40 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2284) | Not available | 40,00 € |
|
| FX6022840050 | Flangia con collare EN1092-1-11B/UNI 2284 PN40 DN 50 A182F316/316L | DN50 - 2 inches | 40 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2284) | Not available | 54,00 € |
|
| FX6022840065 | Flangia con collare EN1092-1-11B/UNI 2284 PN40 DN 65 A182F316/316L | DN65 - 2 1/2 inches | 40 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2284) | Limited quantity | 71,00 € |
|
| FX6022840080 | Flangia con collare EN1092-1-11B/UNI 2284 PN40 DN 80 A182F316/316L | DN80 - 3 inches | 40 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2284) | Not available | 70,00 € |
|
| FX6022840100 | Flangia con collare EN1092-1-11B/UNI 2284 PN40 DN 100 A182F316/316L | DN100 - 4 inches | 40 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2284) | Not available | 97,00 € |
|
