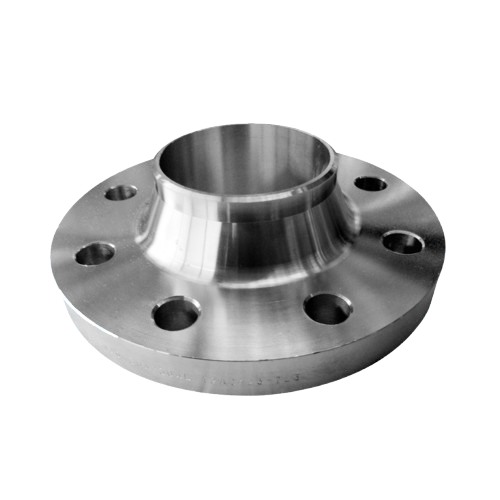

EN 1092-1 Type 11/B PN16 forged flanges with collar (ex DIN 2633), made of stainless steel A182/F304, F304L, F316, and F316L, provide enhanced mechanical strength and sealing. Suitable for medium-pressure hydraulic, thermal, and process systems, available in diameters from DN15 to DN300, ensuring reliability, durability, and compliance with international standards.
DN | A | C2 | R | H2 | N1 | H3 | S | No. of Holes | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
From DN15 to DN50, identical dimensions with PN40 | |||||||||
50 | 60.3 | 18 | 6 | 45 | 74 | 8 | 2.9 | 4 | 2.53 |
65 | 76.1 | 18 | 6 | 45 | 92 | 10 | 2.9 | 8(4)* | 3.06 |
80 | 88.9 | 20 | 6 | 50 | 105 | 10 | 3.2 | 8 | 3.70 |
100 | 114.3 | 20 | 8 | 52 | 131 | 12 | 3.6 | 8 | 4.62 |
125 | 139.7 | 22 | 8 | 55 | 156 | 12 | 4.0 | 8 | 6.30 |
150 | 168.3 | 22 | 10 | 55 | 184 | 12 | 4.5 | 8 | 7.75 |
200 | 219.1 | 24 | 10 | 62 | 235 | 16 | 6.3 | 12 | 11.00 |
250 | 273.0 | 26 | 12 | 70 | 292 | 16 | 6.3 | 12 | 15.60 |
300 | 323.9 | 28 | 12 | 78 | 344 | 16 | 7.1 | 12 | 22.00 |
Filter by:
| Code | Description | Nominal Diameter (DN) | Nominal Pressure (PN) | Material | Construction type | Brand | Norms | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| FX40022820015 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 15 A182/F304/F304L | DN15 - 1/2 inch | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Available | 16,00 € |
|
| FX40022820020 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 20 A182/F304/F304L | DN20 - 3/4 inch | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Available | 20,00 € |
|
| FX40022820025 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 25 A182/F304/F304L | DN25 - 1 inch | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Not available | 23,00 € |
|
| FX40022820032 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 32 A182/F304/F304L | DN32 - 1 1/4 inch | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 30,00 € |
|
| FX40022820040 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 40 A182/F304/F304L | DN40 - 1 1/2 inches | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 38,00 € |
|
| FX40022820050 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 50 A182/F304/F304L | DN50 - 2 inches | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 41,00 € |
|
| FX40022820065 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 65 A182/F304/F304L | DN65 - 2 1/2 inches | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 42,00 € |
|
| FX40022820080 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 80 A182/F304/F304L | DN80 - 3 inches | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 49,00 € |
|
| FX40022820100 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 100 A182/F304/F304L | DN100 - 4 inches | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 61,00 € |
|
| FX40022820125 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 125 A182/F304/F304L | DN125 - 5 inches | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Limited quantity | 69,00 € |
|
| FX40022820150 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 150 A182/F304/F304L | DN150 - 6 inches | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Not available | 82,00 € |
|
| FX40022820200 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 200 A182/F304/F304L | DN200 - 8 inches | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Not available | 114,00 € |
|
| FX40022820250 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 250 A182/F304/F304L | DN250 - 10 inches | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Not available | 178,00 € |
|
| FX40022820300 | Flangia con collare EN1092-1-11B/UNI 2282/29 PN16 DN 300 A182/F304/F304L | DN300 - 12 inches | 16 | A182/F304/F304L | With Collar | Intertubi | EN1092-1 (UNI 2284/29) | Not available | 211,00 € |
|
| FX6022820015 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 15 A182F316/316L | DN15 - 1/2 inch | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Not available | 20,00 € |
|
| FX6022820020 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 20 A182F316/316L | DN20 - 3/4 inch | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Limited quantity | 26,00 € |
|
| FX6022820025 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 25 A182F316/316L | DN25 - 1 inch | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Not available | 32,00 € |
|
| FX6022820032 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 32 A182F316/316L | DN32 - 1 1/4 inch | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Not available | 45,00 € |
|
| FX6022820040 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 40 A182F316/316L | DN40 - 1 1/2 inches | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Not available | 40,00 € |
|
| FX6022820050 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 50 A182F316/316L | DN50 - 2 inches | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Limited quantity | 48,00 € |
|
| FX6022820065 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 65 A182F316/316L | DN65 - 2 1/2 inches | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Limited quantity | 59,00 € |
|
| FX6022820080 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 80 A182F316/316L | DN80 - 3 inches | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Not available | 76,00 € |
|
| FX6022820100 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 100 A182F316/316L | DN100 - 4 inches | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Limited quantity | 67,00 € |
|
| FX6022820125 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 125 A182F316/316L | DN125 - 5 inches | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Not available | 93,00 € |
|
| FX6022820150 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 150 A182F316/316L | DN150 - 6 inches | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Not available | 112,00 € |
|
| FX6022820200 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 200 A182F316/316L | DN200 - 8 inches | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Not available | 156,00 € |
|
| FX6022820250 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 250 A182F316/316L | DN250 - 10 inches | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Not available | 225,00 € |
|
| FX6022820300 | Flangia con collare EN1092-1-11B/UNI 2282 PN16 DN 300 A182F316/316L | DN300 - 12 inches | 16 | A182/F316/F316L | With Collar | Intertubi | EN1092-1 (UNI 2282) | Not available | 301,00 € |
|
