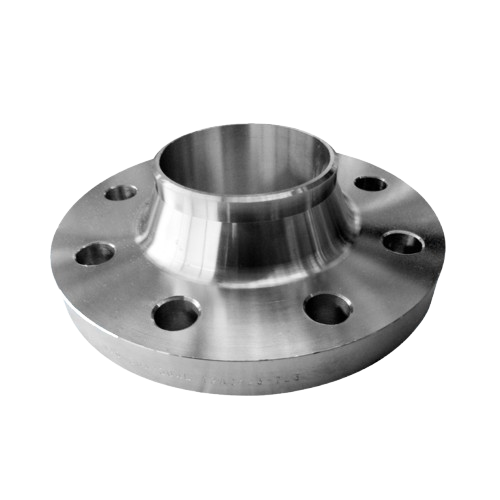

Forged flanges with collar EN 1092-1 TYPE 11/B PN10 (EX DIN 2632)

Name: Forged flanges with collar EN 1092-1 TYPE 11/B PN10 (EX DIN 2632)
SKU: FX6022810200
Availability: InStock

Nominal Diameter (DN) : DN200 - 8 inches,DN250 - 10 inches

Nominal Pressure (PN) : 10

Material : A182/F316/F316L

Construction type : With Collar

Brand : Intertubi

Norms : EN1092-1 (UNI 2281)

DN	A	C2	R	H2	N1	H3	S	No. of Holes	Weight Kg
From DN15 to DN50, identical dimensions with PN40
From DN50 to DN150, identical dimensions with PN16
200	219.5	24	10	62	234	16	5.9	8	11.3
250	273.0	26	12	68	292	16	6.3	12	14.7
300	323.9	26	12	68	342	16	7.1	12	17.4

Scheda Tecnica

Filter by:

Use the filters to narrow your search, select the desired quantity and add the product to the cart.

▼

▼

▼

▼

▼

▼

Code	Description	Nominal Diameter (DN)	Nominal Pressure (PN)	Material	Construction type	Brand	Norms	Availability	Your Price	Add
FX6022810200	Flangia con collare EN1092-1-11B/UNI 2281 PN10 DN 200 A182F316/316L	DN200 - 8 inches	10	A182/F316/F316L	With Collar	Intertubi	EN1092-1 (UNI 2281)	Limited quantity	158,00 €
FX6022810250	Flangia con collareEN1092-1-11B/UNI 2281 PN10 DN 250 A182F316/316L	DN250 - 10 inches	10	A182/F316/F316L	With Collar	Intertubi	EN1092-1 (UNI 2281)	Not available	210,00 €
