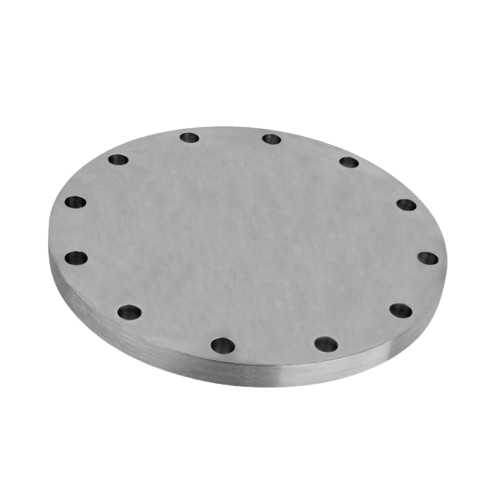

EN 1092-1 Type 05/A PN40 forged blind flanges (ex UNI 6095), made of stainless steel A182/F304L, are designed for safe closure of high-pressure lines and systems. They provide high mechanical strength and corrosion resistance, ensuring reliability in industrial and process applications. Available in diameters from DN15 to DN200, fully compliant with international standards, for durable and secure operation under demanding conditions.
DN | D | b | Holes | Weight (Kg) | ||
|---|---|---|---|---|---|---|
a | f | No. of holes | ||||
15 | 95 | 16 | 65 | 14 | 4 | 0.71 |
20 | 105 | 18 | 75 | 14 | 4 | 1.01 |
25 | 115 | 18 | 85 | 14 | 4 | 1.22 |
32 | 140 | 18 | 100 | 18 | 4 | 1.8 |
40 | 150 | 18 | 110 | 18 | 4 | 2.09 |
50 | 165 | 20 | 125 | 18 | 4 | 3.2 |
65 | 185 | 22 | 145 | 18 | 8 | 4.3 |
80 | 200 | 24 | 160 | 18 | 8 | 5.9 |
100 | 235 | 24 | 190 | 22 | 8 | 7.5 |
125 | 270 | 26 | 220 | 26 | 8 | 10.8 |
150 | 300 | 28 | 250 | 26 | 8 | 14.5 |
200 | 375 | 36 | 320 | 30 | 12 | 20.5 |
250 | 450 | 38 | 385 | 33 | 12 | 29.5 |
300 | 515 | 42 | 450 | 33 | 16 | 46.2 |
350 | 580 | 46 | 510 | 36 | 16 | 59.8 |
400 | 660 | 50 | 585 | 39 | 16 | 74.2 |
450 | 685 | 57 | 610 | 39 | 20 | 89.5 |
500 | 755 | 57 | 670 | 42 | 20 | 123.1 |
Filter by:
| Code | Description | Nominal Diameter (DN) | Nominal Pressure (PN) | Material | Construction type | Brand | Norms | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| FX40060950015 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 15 A182/F304L | DN15 - 1/2 inch | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Not available | 14,00 € |
|
| FX40060950020 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 20 A182/F304L | DN20 - 3/4 inch | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Limited quantity | 24,00 € |
|
| FX40060950025 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 25 A182/F304L | DN25 - 1 inch | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Not available | 29,00 € |
|
| FX40060950032 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 32 A182/F304L | DN32 - 1 1/4 inch | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Limited quantity | 39,00 € |
|
| FX40060950040 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 40 A182/F304L | DN40 - 1 1/2 inches | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Limited quantity | 41,00 € |
|
| FX40060950050 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 50 A182/F304L | DN50 - 2 inches | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Limited quantity | 45,00 € |
|
| FX40060950065 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 65 A182/F304L | DN65 - 2 1/2 inches | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Limited quantity | 75,00 € |
|
| FX40060950080 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 80 A182/F304L | DN80 - 3 inches | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Not available | 76,00 € |
|
| FX40060950100 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 100 A182/F304L | DN100 - 4 inches | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Not available | 104,00 € |
|
| FX40060950125 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 125 A182/F304L | DN125 - 5 inches | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Not available | 138,00 € |
|
| FX40060950150 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 150 A182/F304L | DN150 - 6 inches | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Not available | 181,00 € |
|
| FX40060950200 | Flangia cieca EN1092-1-05A/UNI 6095 PN40 DN 200 A182/F304L | DN200 - 8 inches | 40 | A182F/F304L | Blind | Intertubi | EN1092-1 (UNI 6095) | Not available | CONTACT HQ |
|
