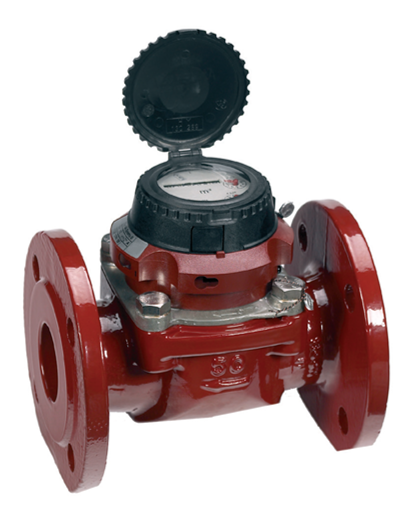

Hot water turbine meters up to 130 °C, available in flanged versions DN 40–200 with PN16 rating. Robust and precise, they are ideal for measuring high flow rates in civil and industrial applications, offering long-lasting accuracy even under demanding conditions.
Parameter | Value |
|---|---|
Article | WPD |
Type | Hot water flow sensor (up to 130 °C) |
Nominal diameter range (DN) | DN 40 – DN 300 |
Operating temperature | 10 – 130 °C |
Protection rating | IP68 |
Electromagnetic environment | Class E2 |
Mechanical environment | Class M1 |
Measuring element | Hydrodynamically balanced impeller with patented symmetrical calibration |
Body material | Powder-coated cast iron |
Impeller material | Plastic |
Display | Hermetically sealed register (IP68) |
Rotating register | Rotatable 360° |
Removable measuring element | Yes |

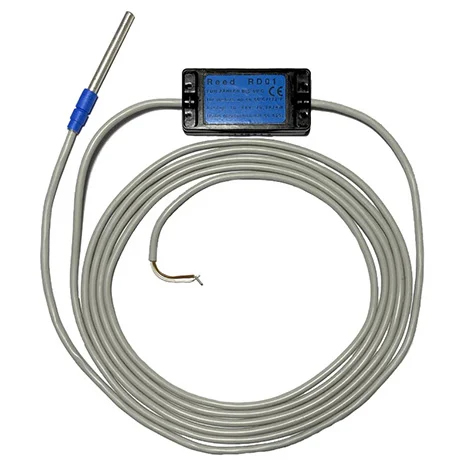

Supported pulse sensors | Up to 3 pulsers (1 OD, 2 RD) without breaking the seal |
Additional materials | Brass, stainless steel |
Recommended applications | Commercial use, light industrial, aggressive water (e.g., saline, chlorinated, soda) |
MID certification | DE-17-MI004-PTB002 |
Minimum / maximum reading | 0.0005 m³ / 1,000,000 m³ (DN ≤ 125), 0.005 m³ / 10,000,000 m³ (DN ≥ 150) |
Pulse values (pulser) | OD02: 0.001 m³ / 0.01 m³; RD02: 0.25 and 0.1 m³; RD022: 1 and 2.5 m³ (values vary by DN) |
Installation | Horizontal or vertical; minimum 3xDN straight upstream |
Filter by:
| Code | Description | Coupling Connection | Brand | Application | Nominal Diameter (DN) | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|
| WPD DN40 | CONTATORE WP-DYNAMIC ACQUA CALDA 130°C PN16 DN 40 | Threaded | Xylem | Hot Water | DN40 - 1 1/2 inches | Not available | CONTACT HQ |
|
| WPD DN50 | CONTATORE WP-DYNAMIC ACQUA CALDA 130°C PN16 DN 50 | Threaded | Xylem | Hot Water | DN50 - 2 inches | Limited quantity | 458,00 € |
|
| WPD DN65 | CONTATORE WP-DYNAMIC ACQUA CALDA 130°C PN16 DN 65 | Threaded | Xylem | Hot Water | DN65 - 2 1/2 inches | Limited quantity | 468,00 € |
|
| WPD DN80 | CONTATORE WP-DYNAMIC ACQUA CALDA 130°C PN16 DN 80 | Threaded | Xylem | Hot Water | DN80 - 3 inches | Limited quantity | 504,00 € |
|
| WPD DN100 | CONTATORE WP-DYNAMIC ACQUA CALDA 130°C PN16 DN100 | Threaded | Xylem | Hot Water | DN100 - 4 inches | Limited quantity | 531,00 € |
|
| WPD DN125 | CONTATORE WP-DYNAMIC ACQUA CALDA 130°C PN16 DN125 | Threaded | Xylem | Hot Water | DN125 - 5 inches | Limited quantity | 623,00 € |
|
| WPD DN150 | CONTATORE WP-DYNAMIC ACQUA CALDA 130°C PN16 DN150 | Threaded | Xylem | Hot Water | DN150 - 6 inches | Limited quantity | 993,00 € |
|
| WPD DN200 | CONTATORE WP-DYNAMIC ACQUA CALDA 130°C PN16 DN200 | Threaded | Xylem | Hot Water | DN200 - 8 inches | Not available | CONTACT HQ |
|
