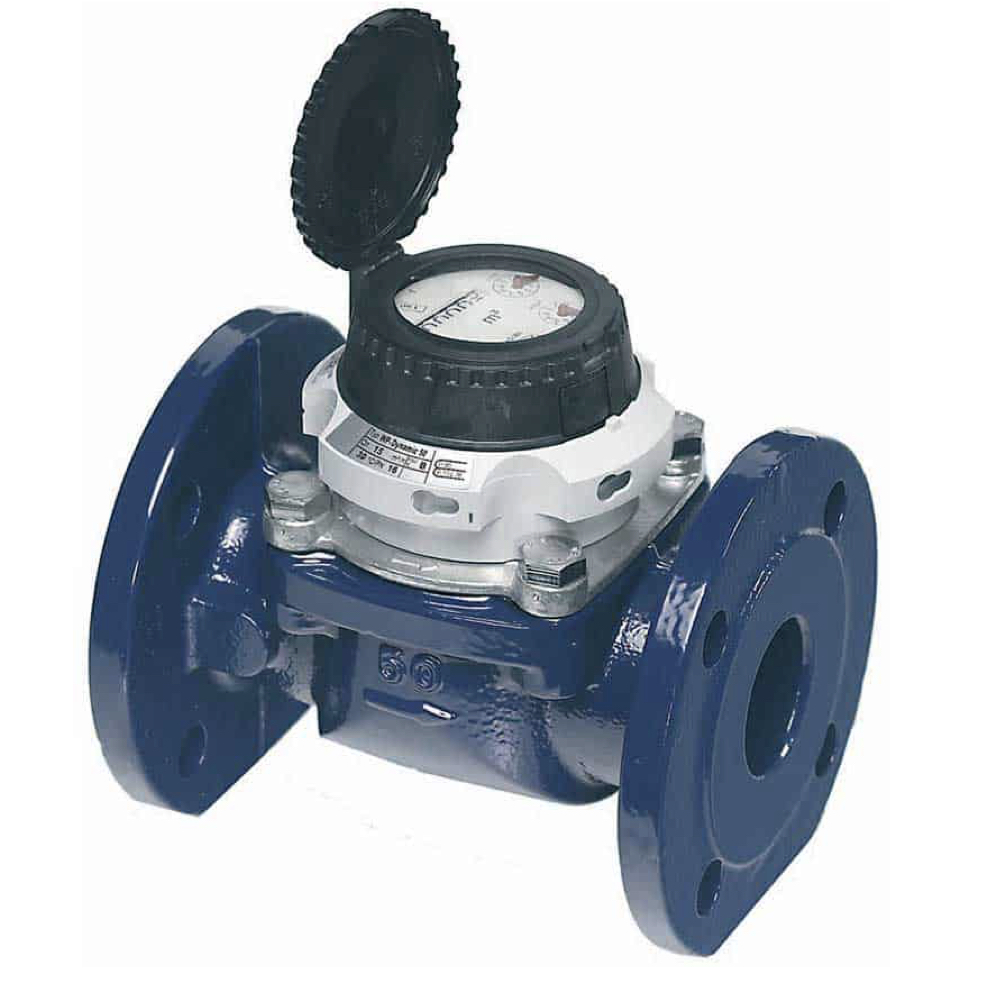

Cold water turbine meters up to 50 °C, with flanged body DN 40–200 PN16. Designed for high flow rates, they provide accuracy, reliability, and durability in civil, industrial, and water distribution applications. Turbine technology ensures consistent measurement, easy maintenance, and integration with modern consumption monitoring systems.
Parameter | Value |
|---|---|
Article | WPDF |
Type | Turbine meter for cold water up to 50 °C (PN 16) |
Nominal diameter range (DN) | DN 40 – DN 400 |
Operating temperature | 0 – 50 °C |
Protection rating | IP68 |
Impeller | Hydrodynamically balanced (≤ DN 300) |
Display | Hermetically sealed register |
Rotatable register | 360° rotatable |
Removable measuring element | Yes, approved with removable element |
Protection from external magnetic fields | Not affected by external magnetic fields |
Body material | Powder-coated cast iron (PN16) |
Impeller material | Plastic |
Additional materials | Brass, stainless steel |
Recommended applications | High constant flows, industrial environments, aggressive fluids (pH ≤ 9) |
Pulse values (pulser) | RD01 and OD01/03 – from 0.001 to 100 m³, depending on DN |
Pressure sensor port | ¼'' for pressure sensor (optional) |
Installation | Horizontal, vertical, inclined; min. 3xDN straight upstream (5xDN for DN400) |
Filter by:
| Code | Description | Coupling Connection | Brand | Application | Nominal Diameter (DN) | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|
| WPDF DN40 | CONTATORE WP-DYNAMIC ACQUA FREDDA 50°C PN16 DN 40 | Threaded | Xylem | Cold Water | DN40 - 1 1/2 inches | Limited quantity | 351,00 € |
|
| WPDF DN50 | CONTATORE WP-DYNAMIC ACQUA FREDDA 50°C PN16 DN 50 | Threaded | Xylem | Cold Water | DN50 - 2 inches | Limited quantity | 370,00 € |
|
| WPDF DN65 | CONTATORE WP-DYNAMIC ACQUA FREDDA 50°C PN16 DN 65 | Threaded | Xylem | Cold Water | DN65 - 2 1/2 inches | Limited quantity | 381,00 € |
|
| WPDF DN80 | CONTATORE WP-DYNAMIC ACQUA FREDDA 50°C PN16 DN 80L=225 MM | Threaded | Xylem | Cold Water | DN80 - 3 inches | Limited quantity | 468,00 € |
|
| WPDF DN100 | CONTATORE WP-DYNAMIC ACQUA FREDDA 50°C PN16 DN 100 | Threaded | Xylem | Cold Water | DN100 - 4 inches | Limited quantity | 468,00 € |
|
| WPDF DN125 | CONTATORE WP-DYNAMIC ACQUA FREDDA 50°C PN16 DN 125 | Threaded | Xylem | Cold Water | DN125 - 5 inches | Limited quantity | 568,00 € |
|
| WPDF DN150 | CONTATORE WP-DYNAMIC ACQUA FREDDA 50°C PN16 DN 150 | Threaded | Xylem | Cold Water | DN150 - 6 inches | Not available | 724,00 € |
|
| WPDF DN200 | CONTATORE WP-DYNAMIC ACQUA FREDDA 50°C PN16 DN 200 | Threaded | Xylem | Cold Water | DN200 - 8 inches | Limited quantity | 1003,00 € |
|
