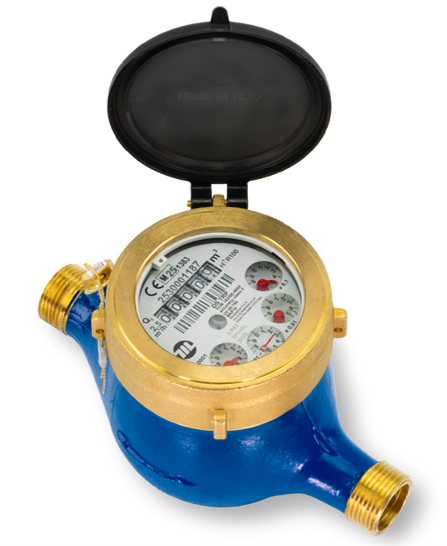

DS TRP multi-jet water meters are designed for cold water measurement up to 50 °C. Featuring protected rollers, magnetic field resistance, and mechanical transmission, they ensure long-term accuracy and durability. Available with threaded connections from 1/2" to 2", MID-certified (R max 200), and ready for pulse or static modules for remote monitoring.
Parameter | Value |
|---|---|
Item | DSTRP |
Type | Multi-jet roller-protected meter for cold water |
MID Certification | R max 200 |
Nominal diameters (DN) | 15–50 mm |
Temperature class | T30, T50 |
Installation class | U0 - D0 |
Operating pressure | 16 bar |
Pressure loss | ΔP 63 |
Maximum reading | 99,999 mÂł |
Minimum reading | 0.05 L |
Starting flow | 4–5 l/h |
Protection against magnetic fields | Not affected by external magnetic fields |
Viewer material | Mineral glass |
Pulse output | Reed switch or static (1P=1-10-100-1000L or 1P=1-10L) |
Indicative weight | 1.45 kg (indicative) |
Nominal flows Q3/Q1 (R) | R ≤ 200 (e.g., R=160 for DN 50) |
Q3 (permanent flow) | 2.5–31.25 m³/h (depending on DN) |
Q4 (overload flow) | 3.13–250 m³/h (depending on DN) |
Q1 (minimum flow) | 15.63–156.25 l/h |
Q2 (transition flow) | 25.01–250 l/h |
Permitted error Q1–Q2 | ±5% |
Permitted error Q2–Q4 | ±2% (T≤30°C), ±3% (T>30°C) |
Sanitary certifications | Available for different countries |
Filter by:
| Code | Description | Coupling Connection | Brand | Application | Nominal Diameter (DN) | Availability | Your Price | Add |
|---|---|---|---|---|---|---|---|---|
| DSTRP1/2 | CONTATORE GETTO MULTIPLO R.P. ACQUA FREDDA 50°C DS TRP 1/2" | Threaded | Maddalena | Cold Water | DN15 - 1/2 inch | Available | 80,00 € |
|
| DSTRP3/4 | CONTATORE GETTO MULTIPLO R.P. ACQUA FREDDA 50°C DS TRP 3/4" | Threaded | Maddalena | Cold Water | DN20 - 3/4 inch | Limited quantity | 77,00 € |
|
| DSTRP1 | CONTATORE GETTO MULTIPLO R.P. ACQUA FREDDA 50°C DS TRP 1" | Threaded | Maddalena | Cold Water | DN25 - 1 inch | Available | 123,00 € |
|
| DSTRP1.1/2 | CONTATORE GETTO MULTIPLO R.P. ACQUA FREDDA 50°C DS TRP 1.1/2" | Threaded | Maddalena | Cold Water | DN40 - 1 1/2 inches | Limited quantity | 218,00 € |
|
| DSTRP1.1/4 | CONTATORE GETTO MULTIPLO R.P. ACQUA FREDDA 50°C DS TRP 1.1/4" | Threaded | Maddalena | Cold Water | DN32 - 1 1/4 inch | Available | 146,00 € |
|
| DSTRP2 | CONTATORE GETTO MULTIPLO R.P. ACQUA FREDDA 50°C DS TRP 2" | Threaded | Maddalena | Cold Water | DN50 - 2 inches | Limited quantity | 279,00 € |
|
